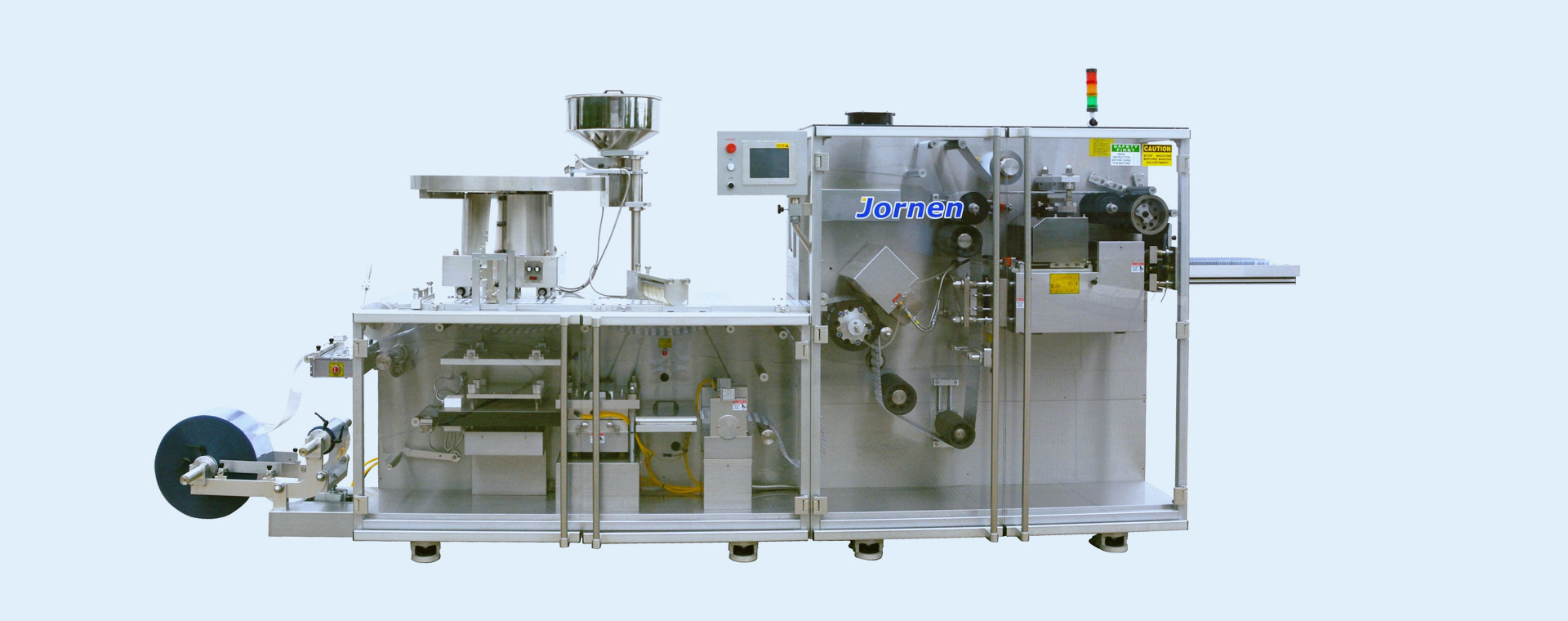

Blister Machine DPH260 (pvc-alu)
Various type of Blister Feeder：
Blister Machine DPH260 for packaging of pvc-alu.
Currently the fastest Blister Machine in China; it is the culmination of 30 years professional experience.
·The machine accommodates forming material reels of up to 600mm in diameter and a waste material trimming cutter, which allow production runs of approximately 90 minutes therefore reducing the material replacement frequency.
·Equipped with integrated forming material splicer to enhance efficiency.
·Automatic format positioning system achieves straightforward format changeover.
·Window frame type no-waste-trimming cutter saves packaging materials.
·Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
·Can be connected to subsequent machines, e.g. High-Speed Cartoners, to form a whole pharmaceutical packaging line.
The blister Packaging module accommodates two forming material reels. One of the reel’s diameter can reach up to 600mm, therefore, reducing the material replacement frequency.
This machine is equipped with an integrated forming material splicer to enhance efficiency during material replacement.
The forming station adopt contact heating method that significantly reduces the forming temperature.
Forming material drag system adopts a precise servo motor to achieve stable, accurate running and allows blister length to be set freely.
Capsules are fed via tracks or tubes into the blisters.
After feeding, the clearing brush removes extra capsules from the webbing to prevent them from entering the sealing station.
Track feeder for capsules, flat and oblong tablets; consists of a hopper, vibratory chute, vibratory conveyor and tracks.
The blister Packaging module adopts rotary sealing and grid sealing type.
Blister Packing Machine embossing station.
There are two waste tanks here for alternative use.
Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
Main Technical Parameters
Max. Speed: alu/alu 100 punches/min. alu/pvc 200 punches/min.
Max. Output: 600 blisters/min. (alu/pvc blister size 57× 80mm)
Max. Forming Area: 245×180mm
Max Forming Depth: 12mm
Material: Max. width 260mm
Machine Power: 15kw
Machine Dimension: 4800mm×1250mm×2000mm
Machine Weight: 2500kg
