The Engineering Behind Blister Packaging: Materials and Processes
10/30/2026

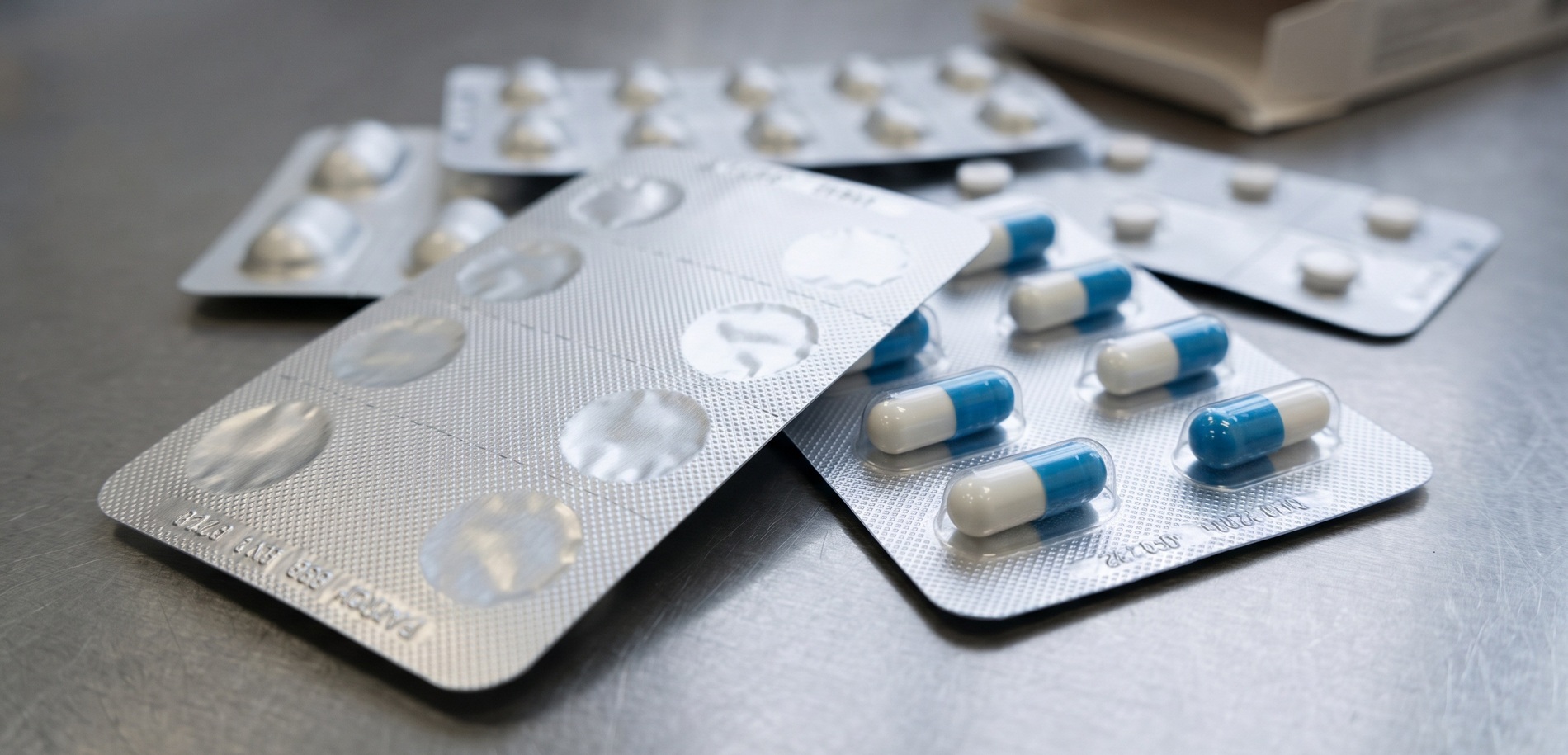

Gently pressing a transparent plastic cavity to pop a tablet through the aluminum foil—this familiar daily action is actually a milestone in modern pharmaceutical packaging engineering. As a dominant format in the global solid dosage market, why did Blister Packaging end the traditional “bulk bottle” era and become the industry standard? This article looks beyond the aluminum-plastic film to explore the precise design and material science behind it.
1. Ending the “Bulk Era”: The Core Logics of Single-Dose Packaging
Before blister packs became standard, pills were mostly stored in bulk in glass or plastic bottles. The emergence of blister packaging represents a significant advancement in single-dose presentation, with its value reflected in three critical dimensions:
- Enhanced Safety through Physical Isolation: Compared to the mixed storage of traditional containers, blister packs create an exclusive “sealed micro-vault” for every single capsule or tablet. This design effectively minimizes the risks of cross-contamination and moisture exposure caused by repeated bottle openings.
- Intuitive Visibility for Medication Adherence: The transparent blister cavities make the remaining dosage clear at a glance. For patients requiring long-term medication, this serves as a basic “visual reminder system,” significantly reducing the probability of missed or accidental double doses.
- Optimal Portability through Physical Segmentation: While bottles are fixed in form, blister cards allow patients to separate individual doses on demand, offering a flexible and highly portable experience.
2. Material Synergies Beneath a Minimalist Exterior
Blister packaging relies on a precise balance of physical properties across multiple engineered layers:
- The Dynamic Balance of the Lidding Foil: Typically 20 to 30 microns thick, the aluminum foil must block light, moisture, and oxygen while maintaining excellent print adhesion. Engineers formulate the aluminum alloy precisely to achieve the correct “brittleness”—easy enough to be pushed through by a finger, yet resilient enough to maintain integrity during transit vibrations.
- The Tiered Solutions of Forming Webs: The choice of forming materials dictates the packaging’s maximum barrier performance. While standard PVC offers high transparency and thermoformability, PVC/PVDC provides enhanced moisture and oxygen barriers. For highly sensitive products, cold-formed Alu-Alu represents the premium standard, offering a barrier rate comparable to glass for high-end biologics.
- The Critical Interface (Heat-Seal Lacquer): At the boundary where the aluminum foil and plastic web meet, a specific heat-seal coating is applied. Under the heated sealing rollers of the packaging machine, this lacquer melts to bond the two disparate materials together, forming a reliable hermetic seal.
3. Recognizing Process Boundaries: Challenges in Blister Packaging
Despite its structural advantages, blister packaging operates within specific physical limitations:
- Thermal Sensitivity: Because the melting point of the heat-seal lacquer generally ranges between 120°C and 180°C, blister packaging cannot withstand terminal high-pressure steam sterilization. Therefore, it is strictly utilized for non-sterile solid dosage forms.
- Mechanical Compressive Limits: Plastic blister cavities, usually less than 0.5 mm thick, are susceptible to deformation from compression during long-haul logistics. Consequently, blister cards depend heavily on folding cartons as secondary outer packaging for structural protection.
- Sustainable Transition: Traditional PVC materials present recycling challenges, and the bonded aluminum-plastic composite structure is difficult to separate. Developing biodegradable alternatives or mono-material recyclable blisters remains a critical engineering focus for the industry today.
Conclusion: The functional design of the aluminum-plastic blister represents a fundamental optimization of the “patient-drug” interaction. As eco-friendly materials mature and smart packaging technologies are introduced, this established engineering format will continue to evolve to meet modern compliance and global sustainability standards.
