Blister Line BPL150

Video of this Blister Line is available at：

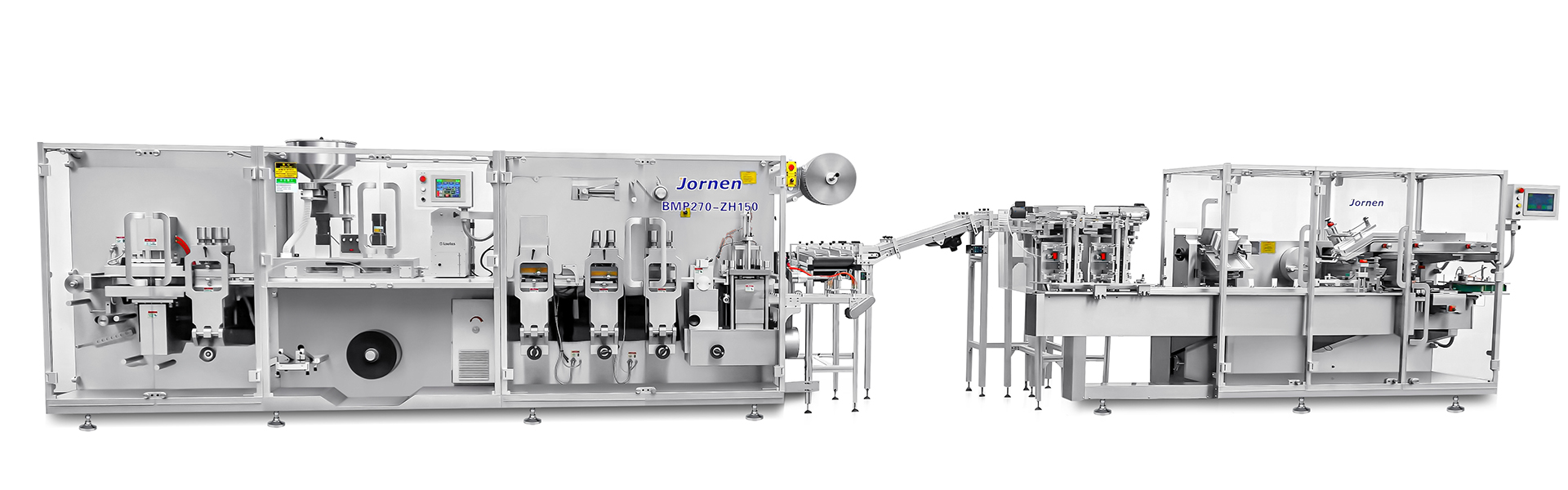

This Blister-Cartoner Line is combined with the BMP270 Blister Machine and ZH150 Cartoner.
By integrating a blister and cartoner module for packaging and cartoning pharmaceutical tablets, capsules, and ampoules, this Blister Packaging Line is Jornen’s innovative response to the need for high efficiency, low-cost operation, flexibility, and maximum productivity for small- and medium-batch production.
Gallery

  • The machine is equipped with an integrated forming material splicer to enhance efficiency during material replacement.

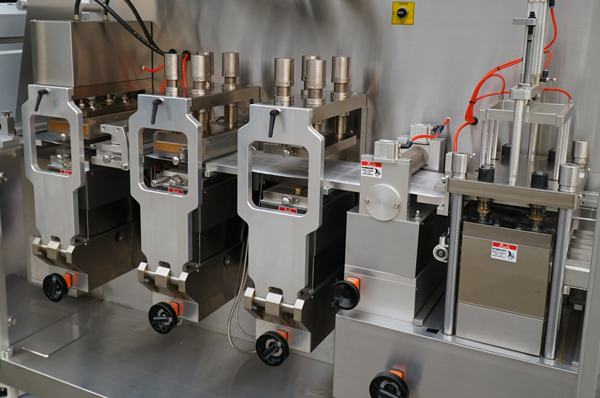

  • Larger area of forming and sealing station, suitable for mass batch production.

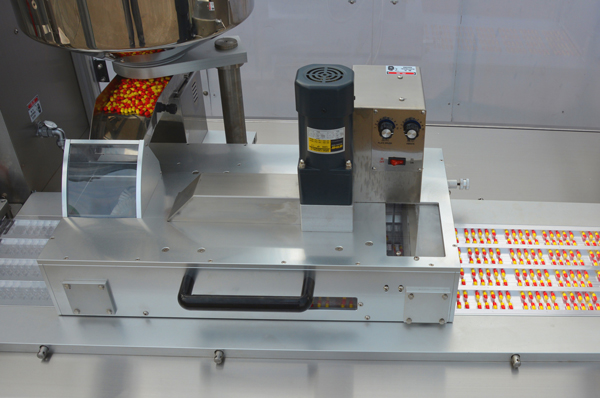

  • The universal feeder consists of two circular brushes and planetary agitators, which sweep the products into blister pockets. Format parts are not required.

  • The universal feeder is capable of feeding almost all items such as capsules, flat tablets, oval tablets, capsule tablets, triangular tablets or other various shapes.

  • Integrated product inspection system with color camera can reject faulty blisters automatically (optional).

  • The lidding material loader adopts quick-fitting mechanism, all of the guide rollers are labeled with a sequence number and placement direction, enabling easily to replace, guide the lid foil through the machine

  • Adopts digital position indicator achieves straightforward adjustment of all work stations during format changeover.

  • After cutting, the blister cards are discharged by transport belt automatically.

  • The blister cards are collected by the vacuum arm and transferred to the cartoner.

  • Inside the magazines, the blister cards are counted when they free fall via the servo- motor, and are then held in position by the transfer belt.

  • The Leaflet are isolated from the botton from a pile magazine, then pulled off and folded. It can make the leaflet fold one to four folds according to customer’s demand.

  • The rotary carton pick-up suck the cartons from the carton magazine then places them in carton conveyor chain.

  • The inserter device can push the blister cards and leaflet into the carton.

  • Long carton magazine for approximately 1000 cartons.

  • In carton conveyor chain the cartons are closed automatically. Adopts digital position indicator achieves straightforward adjustment.

  • After actions of inserting of blister cards and leaflets into cartons, embossing and closing, the cartons were discharged automatically.

  • Pinhole detection system for quality assurance of blister packaging (optional).
