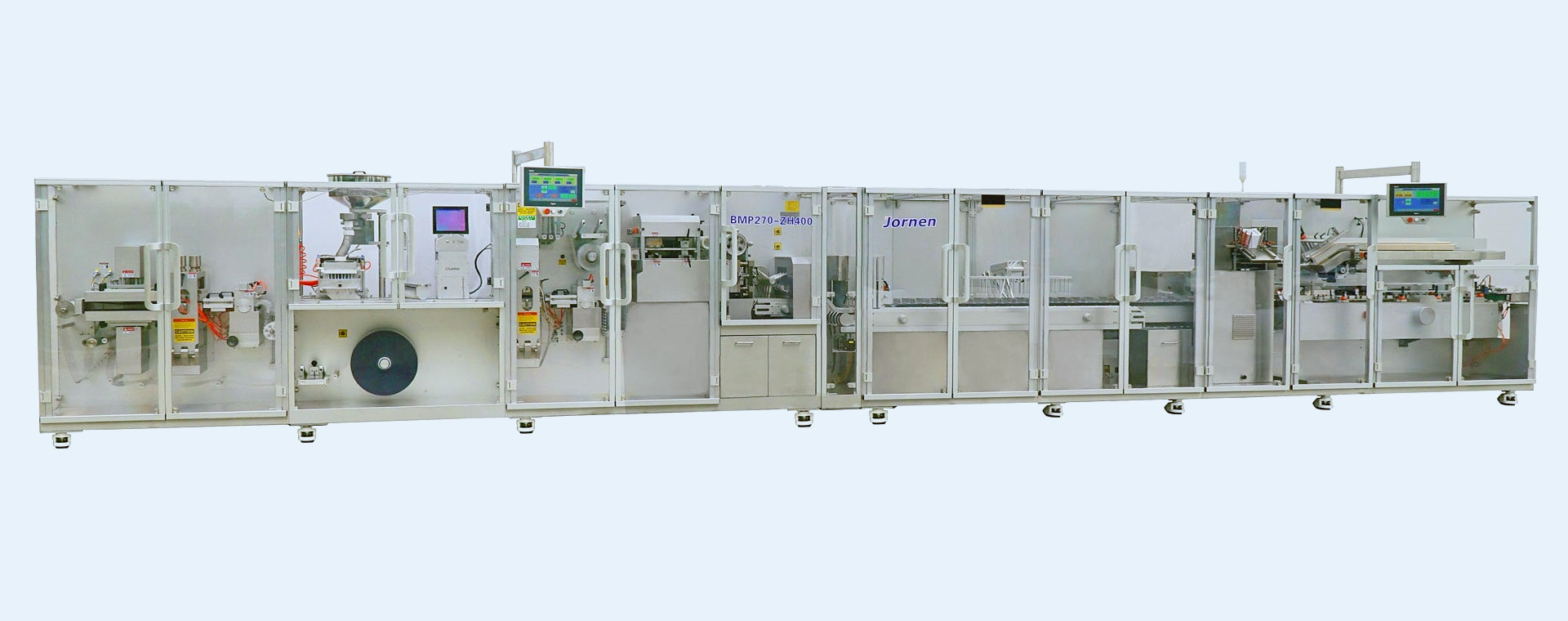

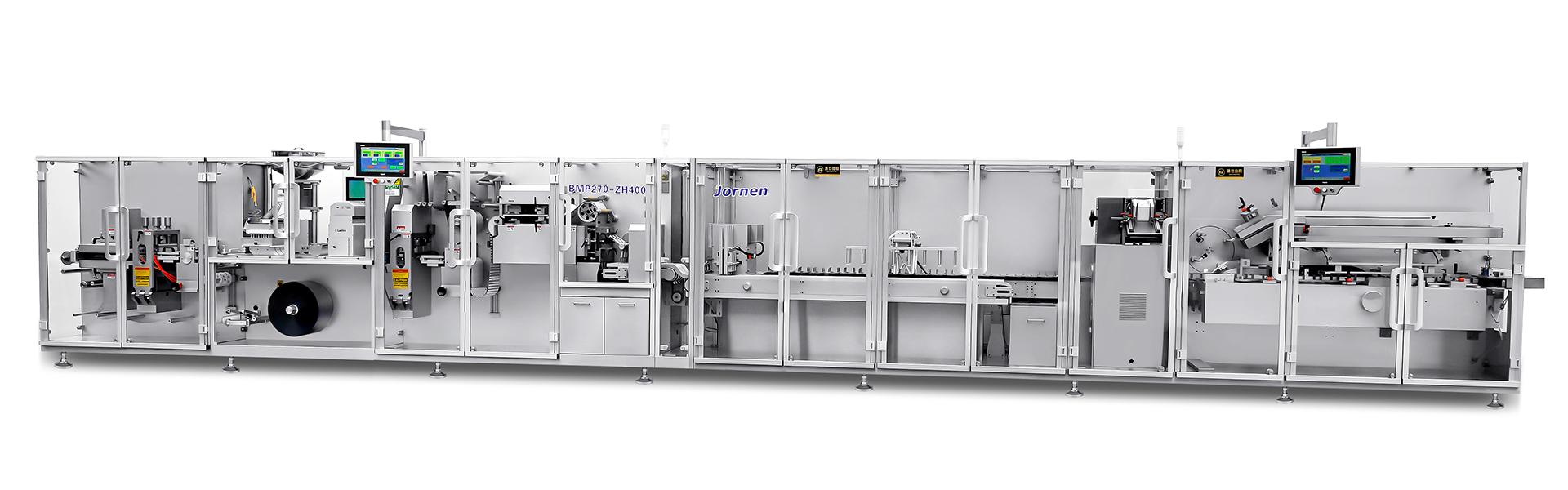

Blister Line BPL400P
Integrating the BMP270H Blister Machine with the ZH400i Cartoner, this advanced packaging line is engineered for the high-efficiency mass production of solid doses and ampoules. Distinctively, it utilizes a platen-type sealing mechanism—a breakthrough for high-speed continuous lines typically dominated by rotary systems—allowing it to accommodate complex product geometries without sacrificing maximum throughput.
Driven by sophisticated servo technology, the line features a robotic transfer unit that precisely synchronizes blister extraction, stacking, and cartoning. Combined with oversized material reels for up to 180 minutes of continuous operation and a fully enclosed safety architecture, it delivers exceptional productivity and format flexibility for demanding pharmaceutical environments.
The machine accommodates forming material reels of up to 600mm in diameter.
Adopt contact heating method that significantly reduces the forming temperature. Thus the shrinkage, deforming of packaging material and power consumption are minimized.
The tuber feeder can fill the entire index at once while the webbing is stationary (optional).
Integrated product inspection system with color camera can reject faulty blisters automatically (optional).
Equipped with an integrated lidding material splicer to enhance efficiency during material replacement.
The sealing station with large area, when the machine stops, the heating mould can rise up automatically,
The high-speed embossing and perforation station.
The sealing station, sealing index, embossing and perforation station.
The blister cards are punched, collected by the vacuum arm, the faulty blister cards can be rejected automatically (optional).
Pinhole detection system for quality assurance of blister packaging (optional).
Max. Output: 400 cartons/min.
Range of Carton Size: Max.: 200x90x60mm Min.: 75x30x15mm
Machine Power: 40kw
Machine Dimension: 12300x1100x1800mm
Machine Weight: 8000kg
