Blister Line DPP260R-ZH120
. Through the integration of a blister and cartoner module for packaging and cartoning of pharmaceutical ampoules, vials, oral liquid, and syringes, etc.
. This Blister Packaging Line is Jornen’s innovative response to the need for high efficiency, low-cost operation, flexibility, and maximum productivity for medium-batch production.
. Adopts various robot feeders for packaging ampoules, vials, oral liquids, and syringes.
. Capable of all standard types of closure systems for cartons from tuck-in to hot-melt.
This Blister Line is suitable for vials, ampoules, syrup, cartridge and syringes, ect.
This Blister Machine unit only produce plastic thermoformed trays.

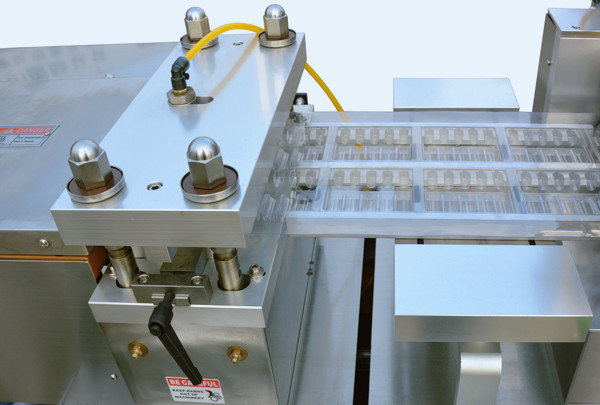

Blister trays forming station.
The web index and blister cutting station.
The blister trays are collected by the vacuum arm and transferred to the feeding conveyor.
The ampule feeding system.
The vacuum arm places ampoules in the feeding cavities.
The feeding system equipped with Servo-regulated and robot.
The ampoules are places in feeding roller.

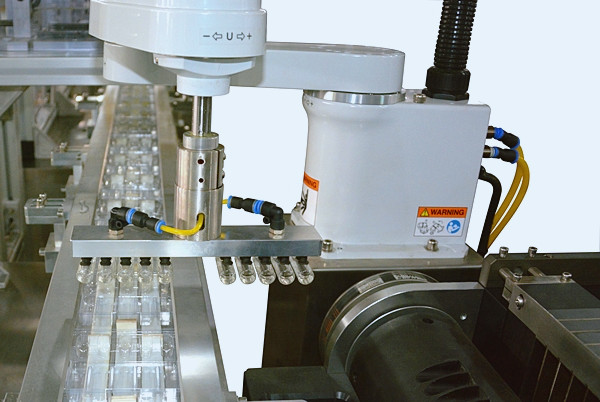

The robot gently places ampoules or vialls in the formed cavities.
The blister trays loaded with ampoules are transferred to the cartoner.
The cartoning unit.
Can be vertical or horizontal layout design according to customer requirement.
DPP260R-ZH120:
Max. Output: 100cartons/min.
Range of Carton Size: Max.: 180x115x50mm Min.: 75x30x15
Machine Power: 8kw
Machine Dimension: 6000x3000x1800mm
Machine Weight: 3000kg
DPP350-ZH120:
Max. Output: 100cartons/min.
Range of Carton Size: Max.: 180x115x50mm Min.: 75x30x15
Machine Power: 9.5kw
Machine Dimension: 8800x1650x1800mm
Machine Weight: 3600kg
