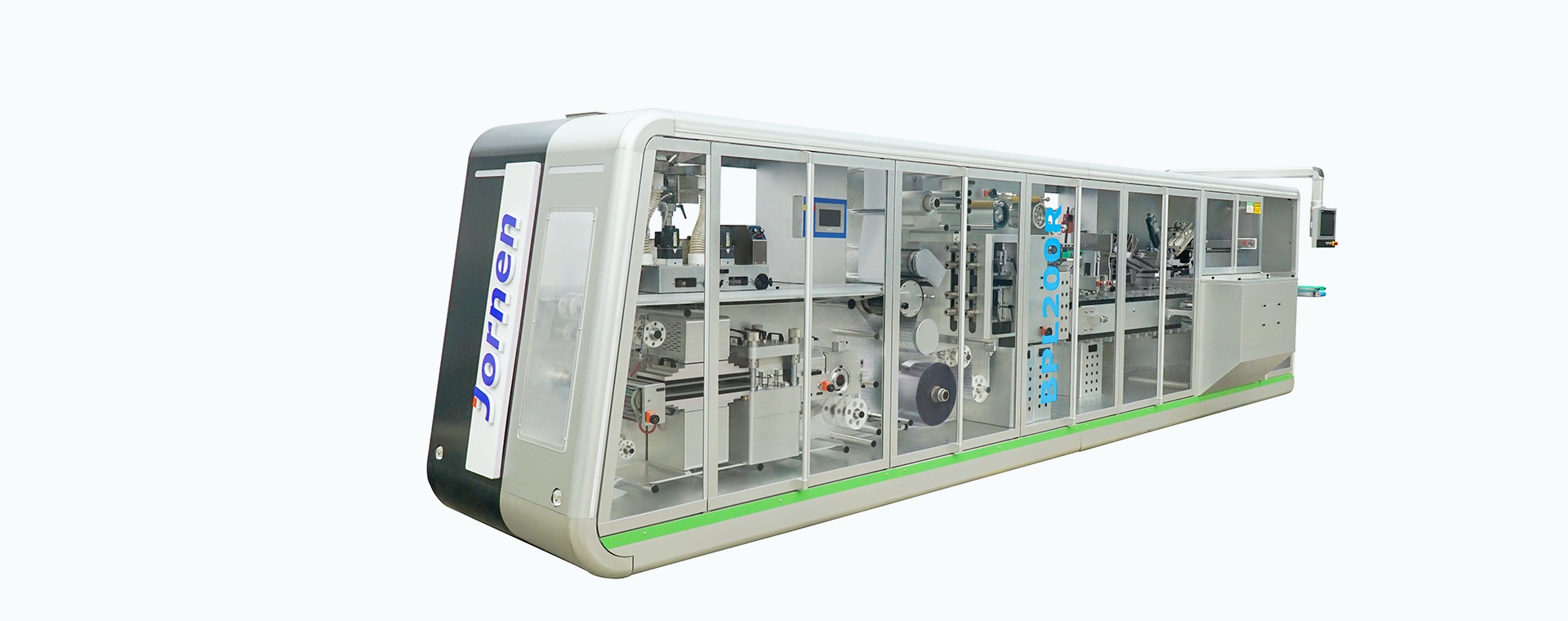

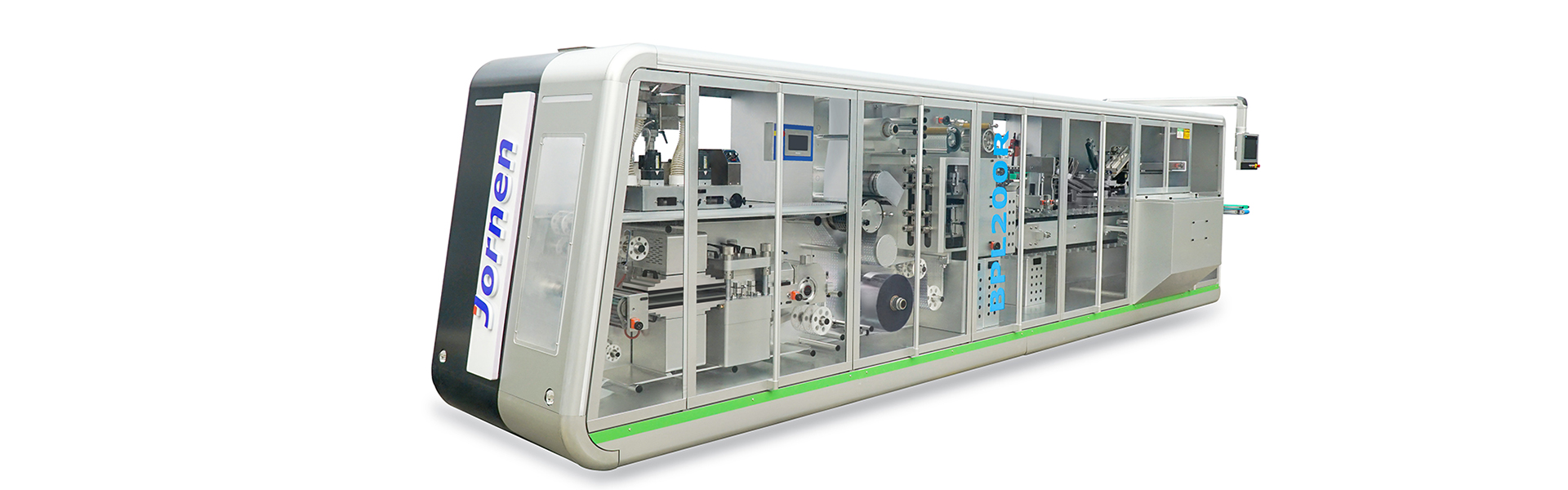

Blister Line BPL200R (compact)

The Integrated Blister and Cartoning Line functions as a consolidated, one-stop packaging solution engineered for pharmaceutical environments requiring multi-variety, small-batch manufacturing. It accommodates frequent format changeovers while maintaining operational stability.

Technical Specifications & Design Mechanisms:
● Compact Line Footprint: The entire integrated blister and cartoning process is condensed into a total machine length of seven meters, designed for facilities with restricted production floor space.
● Membrane Heating Technology: The blister forming station utilizes membrane heating to provide uniform temperature distribution across the forming material, optimizing thermal transfer and reducing energy consumption.
● Tool-Less Format Changeover: Equipped with quick-release components and digital position indicators. This architecture facilitates rapid and repeatable format adjustments, minimizing idle downtime between different production runs.
● Direct Blister Transfer: A synchronized transfer mechanism utilizes precision vacuum suction arms to move punched blister cards directly from the cutting station into the cartoner’s bucket chain, eliminating intermediate handling.
● Servo-Driven Indexing: The core stations are controlled by dedicated servo motors, ensuring strict indexing accuracy and consistent operation across variable speeds.
● Cartoning Configurations: The cartoning unit processes leaflets (1 to 4 folds) and supports standard tuck-in closures, with structural compatibility for integrating optional hot-melt glue systems based on application requirements.
● Operational Safety: Enclosed by an ergonomic sliding door system, which provides necessary protective guarding during operation while allowing full structural access for routine maintenance and cGMP cleaning procedures.
