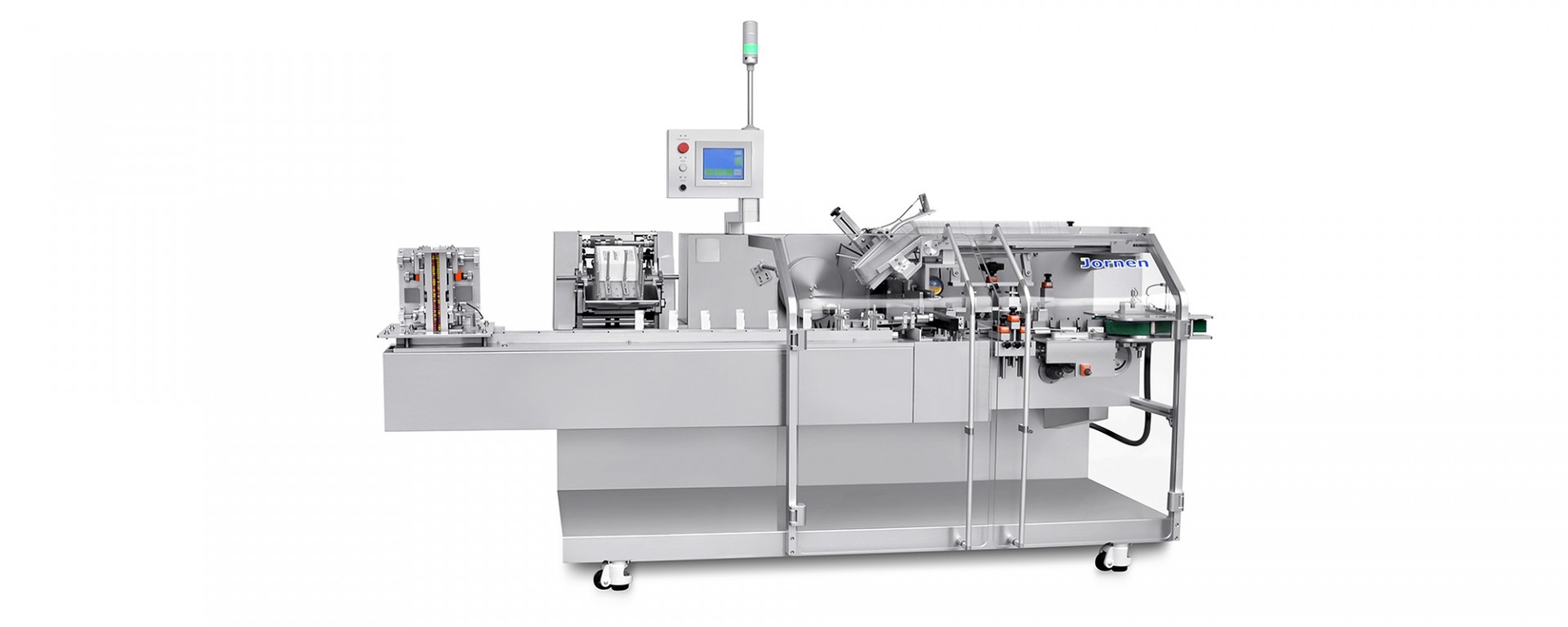

Cartoning Machine ZH120
The ZH120 is a highly versatile, intermittent-motion cartoning machine designed to meet the rigorous demands of modern pharmaceutical and cosmetic packaging. Built on a cGMP-compliant cantilever (balcony) architecture, it significantly simplifies daily cleaning and maintenance while mitigating the risk of cross-contamination.
Engineered for remarkable adaptability, this compact system seamlessly handles a wide array of products—from blister cards and vials to flexible sachets and daily commodities. Equipped with an advanced dual-suction-cup carton-handling mechanism, integrated leaflet-folding capabilities, and comprehensive safety sensors, the ZH120 ensures stable, high-speed cartoning as a standalone unit or fully integrated into an automated production line.
Intermittent Motion: Compact and space-saving, ideal for small batches.
Wide Applicability: Cartons blister cards, bottles, and daily commodities.
Rotary Pick & Place: Efficiently extracts and opens flat cartons.
Leaflet Folding: Integrated device folds leaflets 1 to 4 times.
High Capacity: Extended magazine holds ~1,000 cartons.
Position Indicators: Digital displays ensure straightforward adjustments.
Smart Setup: Optional servo positioning for recipe-based changeovers.
Balcony Design: Cantilever structure simplifies cleaning and maintenance.
Versatile Cartoning Applications
Inside the magazine, the blister cards are counted when they free fall via the servo-motor, and are then held in position by the transfer belt
The Leaflet are isolated from the bottom from a pile magazine, then pulled off and folded. It can make the leaflet fold one to four folds according to customer’s demand.
The high luminosity liquid crystal color touch screen with wide angle inspection.
Long carton magazine
The rotary carton pick-up suck the cartons from the carton magazine
The inserter device can push the blister cards and leaflet into the carton.
In carton conveyor chain the cartons are closed automatically. Adopts digital position indicator achieves straightforward adjustment.
After actions of inserting of blister cards and leaflets into cartons, embossing and closing, the cartons were discharged automatically
| Max.Output: | 120 cartons/min. |
| Range of Carton Size: | Max.150x115x50mm Min.75x30x15mm |
| Machine Power: | 1.8kw |
| Machine Dimension: | 3500x1500x1800mm |
| Machine Weight: | 1200kg |
