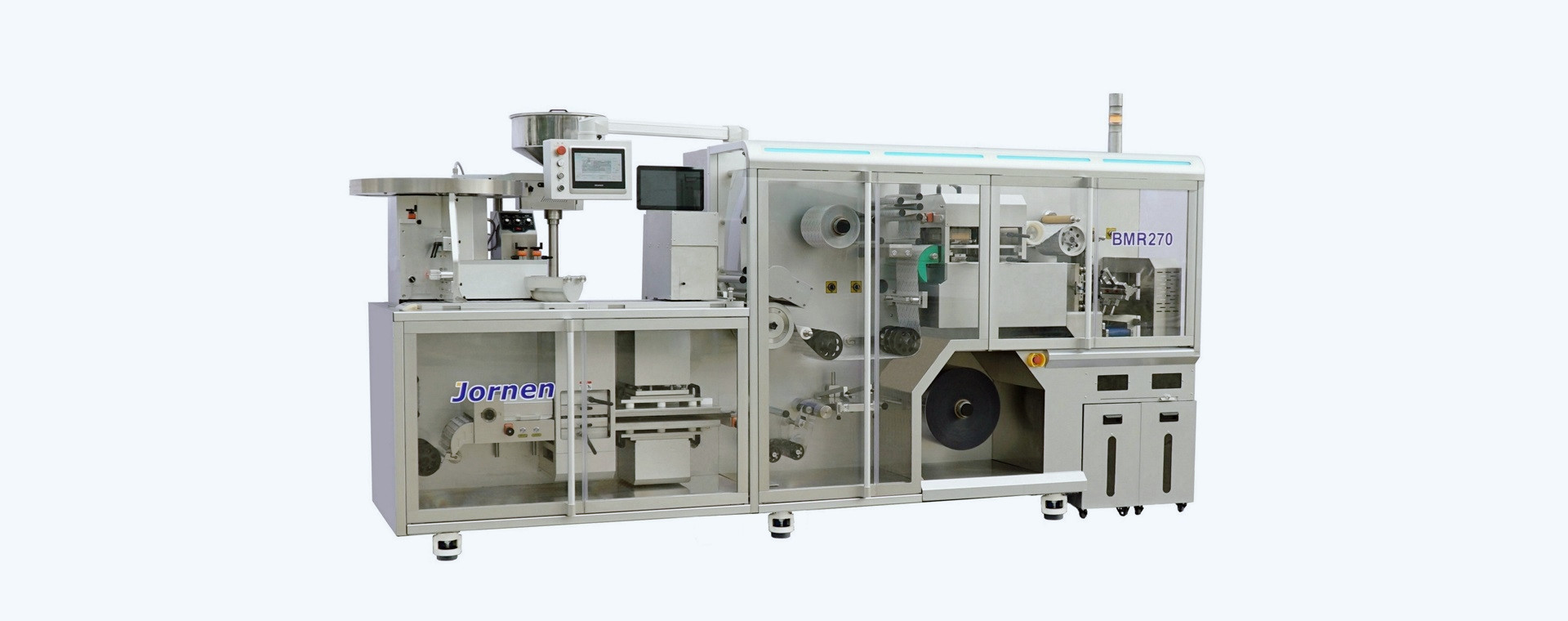

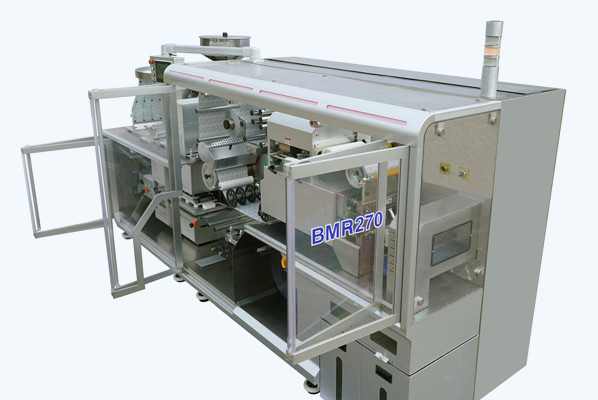

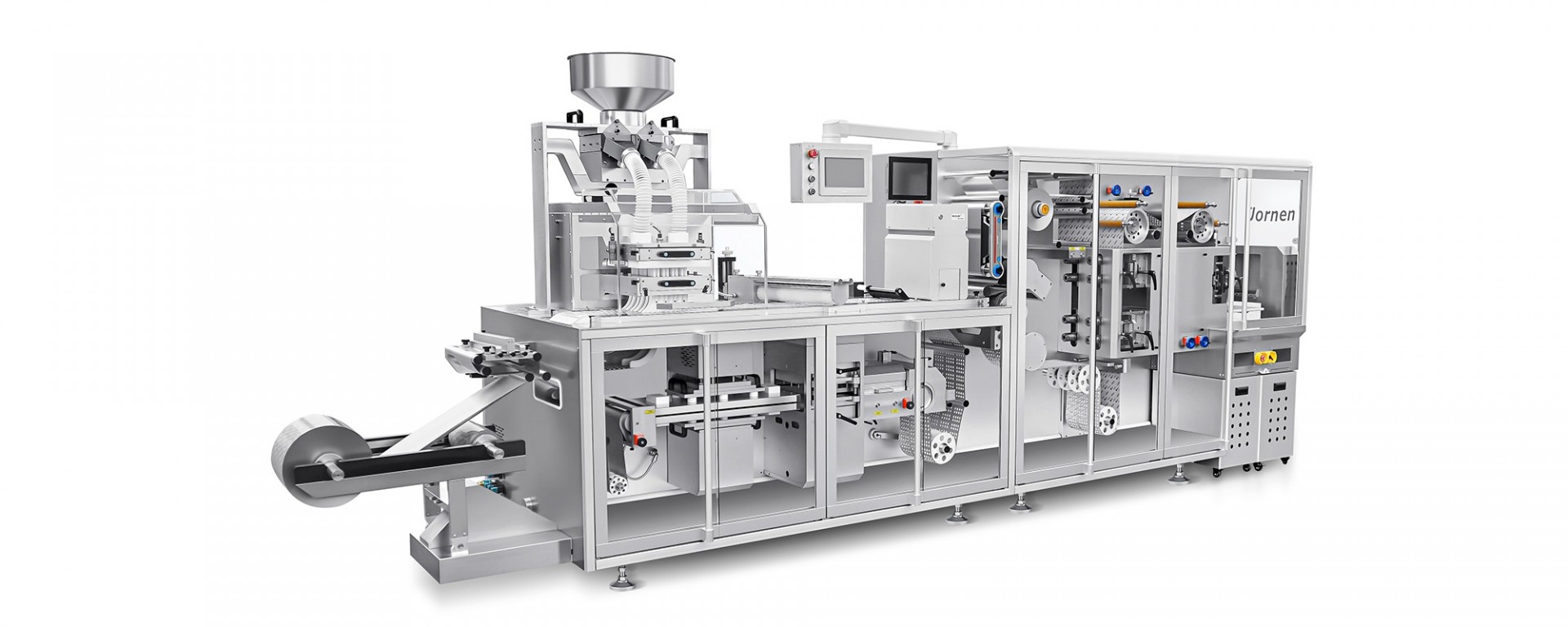

Blister Machine BMR270

Videos of this Blister Machine:
Various types of Blister Feeder:
> The high-speed Blister Packaging Machine is fully servo-regulated, culminating in more than 30 years of professional experience.
> The main structure has a vertical partition to separate the drive section (rear) from the operating zones (front).
> GMP-compliant cantilever (balcony type) layout for easy, pharmaceutically compliant cleaning.
> Accommodates forming material reels of up to 600mm in diameter and a waste material trimming cutter, which allows production to run uninterrupted for approximately 90 minutes, reducing the material replacement frequency.
> Equipped with integrated forming material splicer to enhance efficiency during material replacement.
> The upper and lower plates adopt a contact heating method that significantly reduces the forming temperature. Thus, shrinkage, deformation of packaging material, and power consumption are minimized.
> It is Equipped with format locking, a positioning system, and a quick-fitting, tool-free design, achieving extremely straightforward format changeover.
> The larger area of the forming station, rotary sealing station, and high-speed embossing and punching station makes it suitable for mass batch production.
> In the sealing station, when the machine stops, the sealing roller rises automatically to prevent hot air from entering the blister pockets, preserving medicine effectiveness.
> Using a quick-fitting design enables the replacement of lidding material easily within 10 seconds.
> Equipped with an integrated lidding material splicer to enhance efficiency during material replacement.
> It adopts a transverse cutter that easily collects its blister card and rejects faulty blisters.
> Window frame type no-waste-trimming cutter saves packaging materials (option).
> The blister indexing length can be set freely through the Touch Screen User Interface, which reduces the time for a format changeover.
> All the main parts are made of premium stainless steel and alu-alloy material and machined by advanced high-precision CNC tooling machines.
> Adopts digital position indicator achieves straightforward adjustment.
> The ergonomic design of the sliding door ensures safe and convenient operation.

Main Technical Parameters

Max. Speed: 200 punches/min.
Max. Output: 600 blisters/min. (alu/pvc blister size 57×80mm)
Max. Forming Area: 260×250mm
Max Forming Depth: 14mm (alu-pvc), 12mm (alu-alu)
Material: Max. width 270mm
Machine Power: 20kw
Machine Dimension: 4600X1200X2200mm
Machine Weight: 3000Kg
