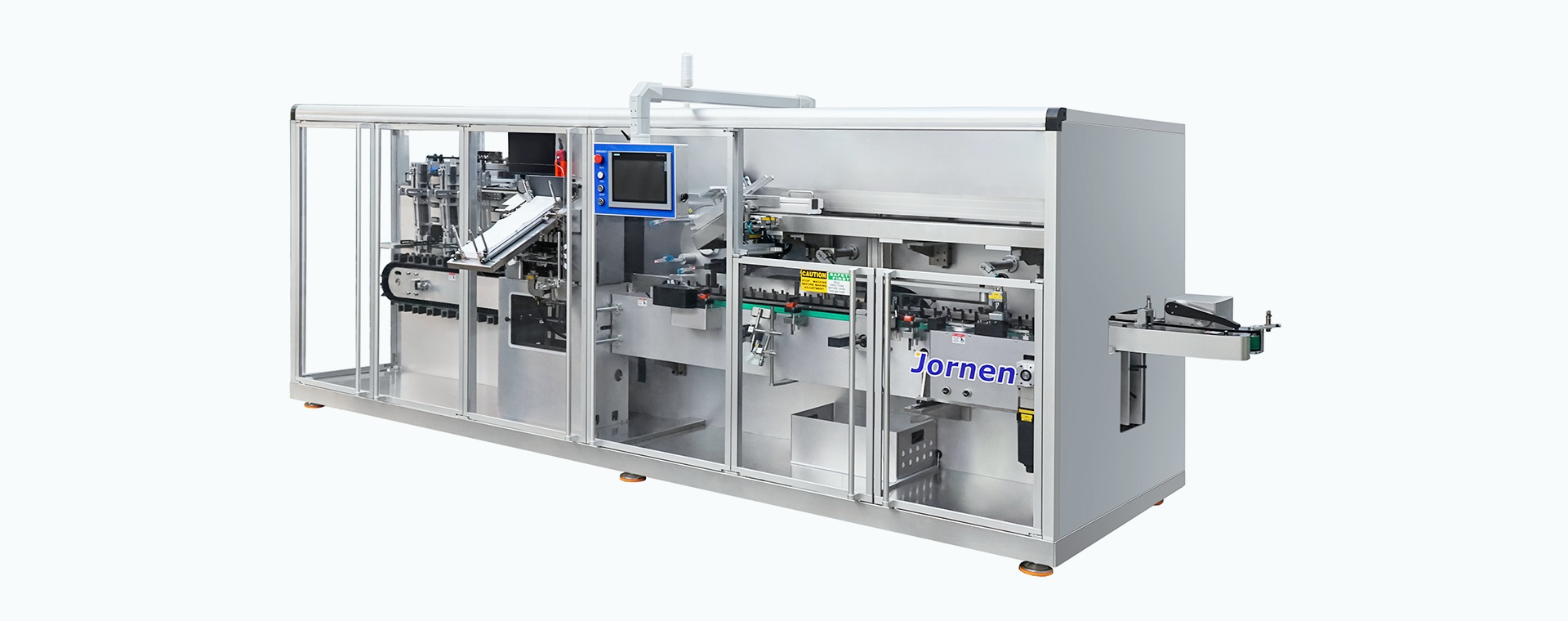

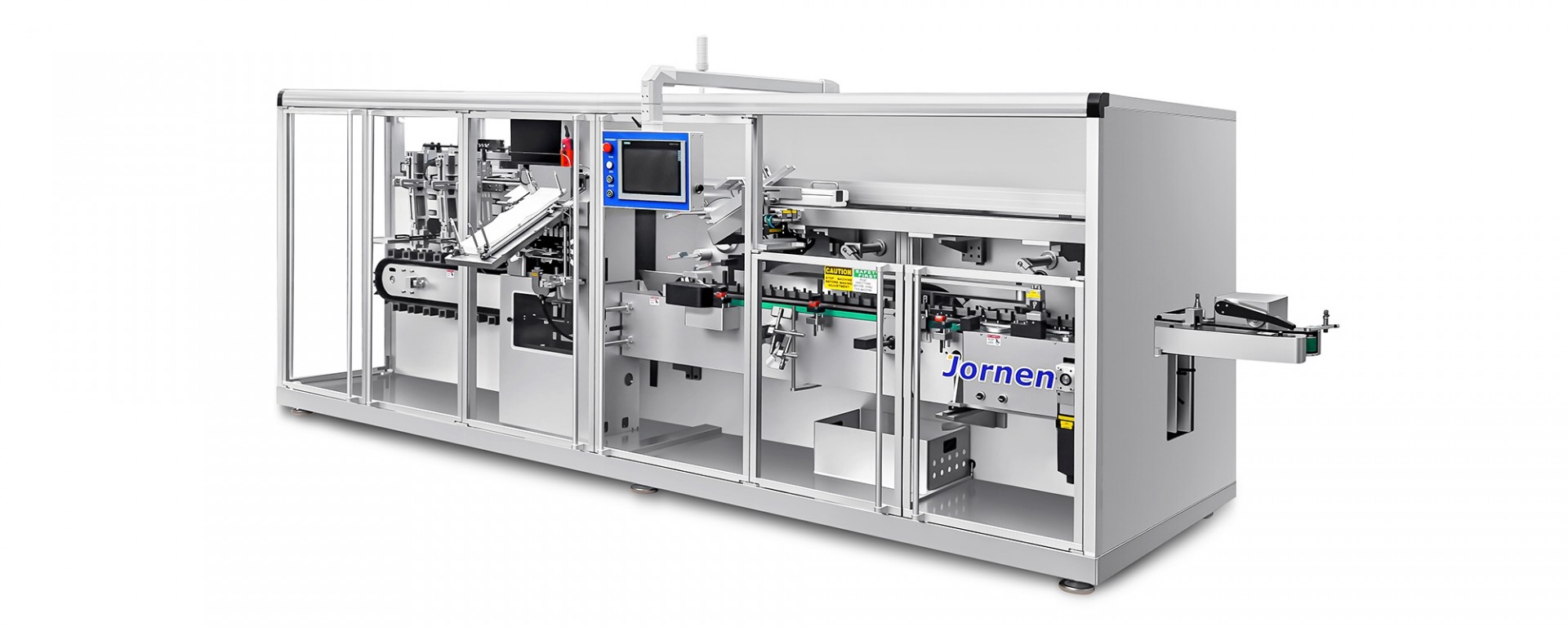

Cartoning Machine ZH500
The characteristics of Cartoning Machine ZH500:
ZH500 is the fastest Continuous Motion Cartoning Machine in our company. It is suitable for the pharmaceutical, food, household chemicals, hardware, and electrical industries for packaging blisters, bottles, vials, pillow packs, toothpaste, etc. It can fold leaflets, open cartons, insert products and leaflets into cartons, emboss, tuck-in, or apply hot-melt closures, and automatically discharge cartons.
The machine is equipped with a series of sensors and automatic protective devices to ensure the machine runs safely and effectively.
It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line.
It is the best choice for mass production.
Main units of this Cartoning Machine:
Gear Device:
The gear drives the carton conveyor chain and the blister cards conveyor chain, which run in continuous motion.
Carton Conveyor Chain:
The carton conveyor chain is used to transfer opened cartons to every station, which can automatically insert blister cards and leaflets into cartons, emboss, close cartons, and discharge cartons.
Leaflet Conveyor Chain:
The leaflet conveyor chain is used to send folded leaflets to the blister feeding station, where the leaflets and blister cards are then inserted into cartons together.
Rotary Carton Pick-up Device:
The rotary carton pick-up with four sets of suction cups can suck the cartons from the carton magazine, open the carton, and place it on the carton conveyor.
Leaflet Folding Device:
The leaflet folding device can fold the leaflet 1 to 4 times according to the customer’s demand.
Inserter Device:
The inserter device can push the blister cards into the carton in continuous motion. This cartoning machine is truly ergonomic thanks to the innovative design, in which the product-inserting device is placed at the rear. The conventional cartoning machine’s inserting device is positioned at the front, protruding from the operating side and being less ergonomic.
Carton Magazine Device:
Adopt a long-carton magazine for approximately 1,000 cartons.
ZH500 is the fastest Continuous Motion Cartoning Machine in our company. It is suitable for the pharmaceutical, food, household chemicals, hardware, and electrical industries for packaging blisters, bottles, vials, pillow packs, toothpaste, etc. It can fold leaflets, open cartons, insert products and leaflets into cartons, emboss, tuck-in, or apply hot-melt closures, and automatically discharge cartons.
The machine is equipped with a series of sensors and automatic protective devices to ensure the machine runs safely and effectively.
It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line.
It is the best choice for mass production.
Main units of this Cartoning Machine:
Gear Device:
The gear drives the carton conveyor chain and the blister cards conveyor chain, which run in continuous motion.
Carton Conveyor Chain:
The carton conveyor chain is used to transfer opened cartons to every station, which can automatically insert blister cards and leaflets into cartons, emboss, close cartons, and discharge cartons.
Leaflet Conveyor Chain:
The leaflet conveyor chain is used to send folded leaflets to the blister feeding station, where the leaflets and blister cards are then inserted into cartons together.
Rotary Carton Pick-up Device:
The rotary carton pick-up with four sets of suction cups can suck the cartons from the carton magazine, open the carton, and place it on the carton conveyor.
Leaflet Folding Device:
The leaflet folding device can fold the leaflet 1 to 4 times according to the customer’s demand.
Inserter Device:
The inserter device can push the blister cards into the carton in continuous motion. This cartoning machine is truly ergonomic thanks to the innovative design, in which the product-inserting device is placed at the rear. The conventional cartoning machine’s inserting device is positioned at the front, protruding from the operating side and being less ergonomic.
Carton Magazine Device:
Adopt a long-carton magazine for approximately 1,000 cartons.
Main Technical Parameters
Max.Output: 500 cartons/min.
Range of Carton Size: Max. 200 x 90 x 60 mm Min. 75 x 30 x 15 mm
Machine Power: 11kw
Machine Dimension: 5600x1700x2100mm
Machine Weight: 4300kg
