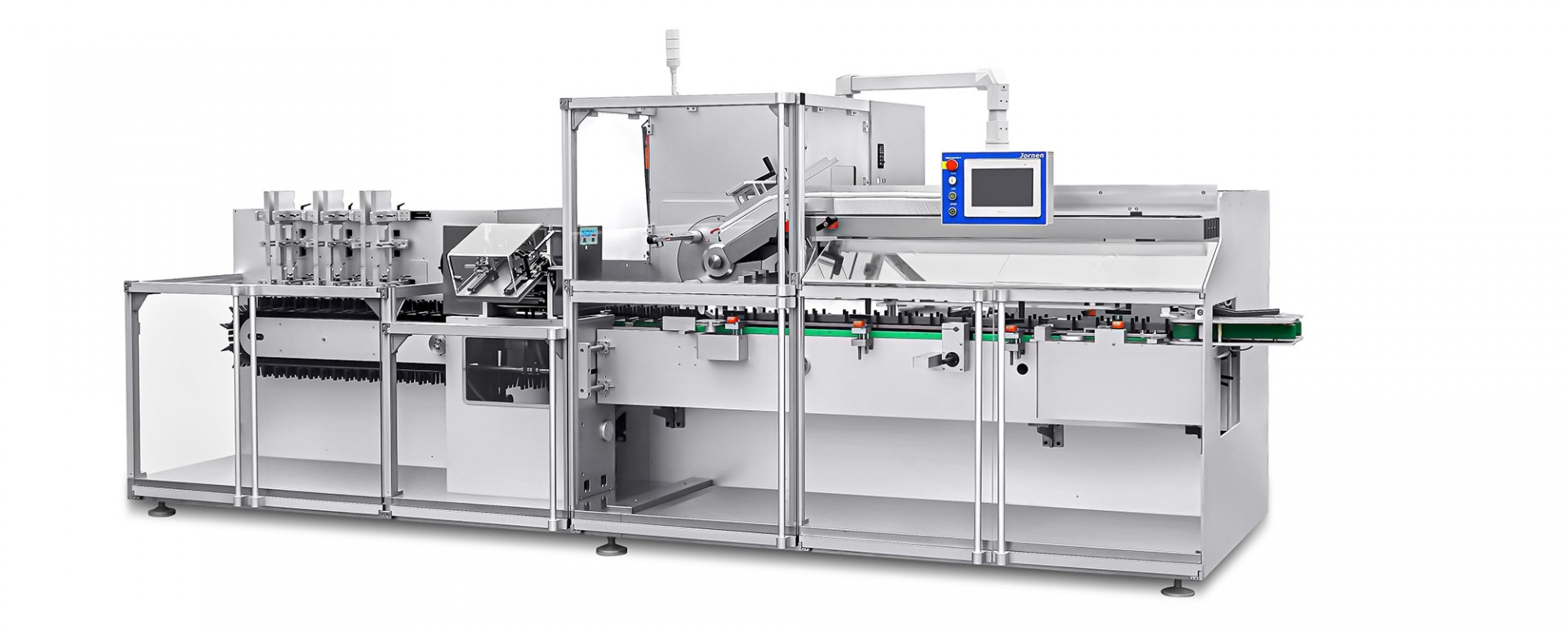

Cartoning Machine ZH400

The video of this Cartoning Machine (Blister Line 400R):
https://youtu.be/BpzCM0Plulc
The characteristics of the Cartoning Machine ZH400:
ZH400 is a continuous-motion cartoning machine. It is suitable for the pharmaceutical, food, household chemicals, hardware, and electrical industries for packaging blisters, bottles, vials, pillow packs, toothpaste, etc. It can fold leaflets, open cartons, insert products and leaflets into cartons, emboss, tuck-in, or apply hot-melt closures, and automatically discharge cartons.
The machine is equipped with a series of sensors and automatic protective devices to ensure safe, effective operation.
It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line.
It is the best choice for mass production.
Main units of this Cartoning Machine:
Gear Device:
The gear drives the carton conveyor chain and the blister card conveyor chain, which run continuously.
Carton Conveyor Chain:
The carton conveyor chain transfers opened cartons to each station, where it can automatically insert blister cards and leaflets into cartons, emboss, close cartons, and discharge cartons.
Leaflet Conveyor Chain:
The leaflet conveyor chain sends folded leaflets to the blister feeding station, where the leaflets and blister cards are inserted into cartons together.
Rotary Carton Pick-up Device:
The rotary carton pick-up with four sets of suction cups can suck the cartons from the carton magazine, open the carton, and place it on the carton conveyor.
Leaflet Folding Device:
The leaflet folding device can fold the leaflet 1 to 4 times, depending on the customer’s demand.
Inserter Device:
The inserter device can push the blister cards into the carton in continuous motion. This cartoning machine is truly ergonomic thanks to the innovative design, in which the product-inserting device is placed at the rear. In a conventional cartoning machine, the inserting device is at the front, where it protrudes from the operating side and is less ergonomic.
Carton Magazine Device:
Adopt a long-carton magazine for approximately 1,000 cartons.
Gallery

  • Inside the magazine, the blister cards are counted when they fall via the servo-system, transferred to the cartoner module

  • The Leaflet Folding Device can adopt GUK or MB Leaflet Folder (optional).

  • The long carton magazine, easily filled from the front. To enable access to clean and adjust the closing station below, the carton magazine can be raised.

  • The Rotary carton feeder pick up cartons then places them in carton conveyor chain.

  • Adopts digital position indicator achieves straightforward adjustment.

  • Optimized ergonomic design places the inserter device at the machine's rear side, making it more convenient to operate.

  • Innovative design to place the inserting device at the rear; The conventional front-placing design protrudes from the operation side is not ergonomic.

  • In carton conveyor chain the cartons are closed automatically.

  • At the end of the machine, the cartons are discharged automatically.

  • The Cartoner module adopts aluminium control enclosure that made in Germany and color Touch Screen User Interface

Main Technical Parameters

Max.Output: 400 cartons/min.
Range of Carton Size: Max.200x90x60mm Min.75x30x15mm
Machine Power: 11kw
Machine Dimension: 5600x1700x2100mm
Machine Weight: 4300kg
