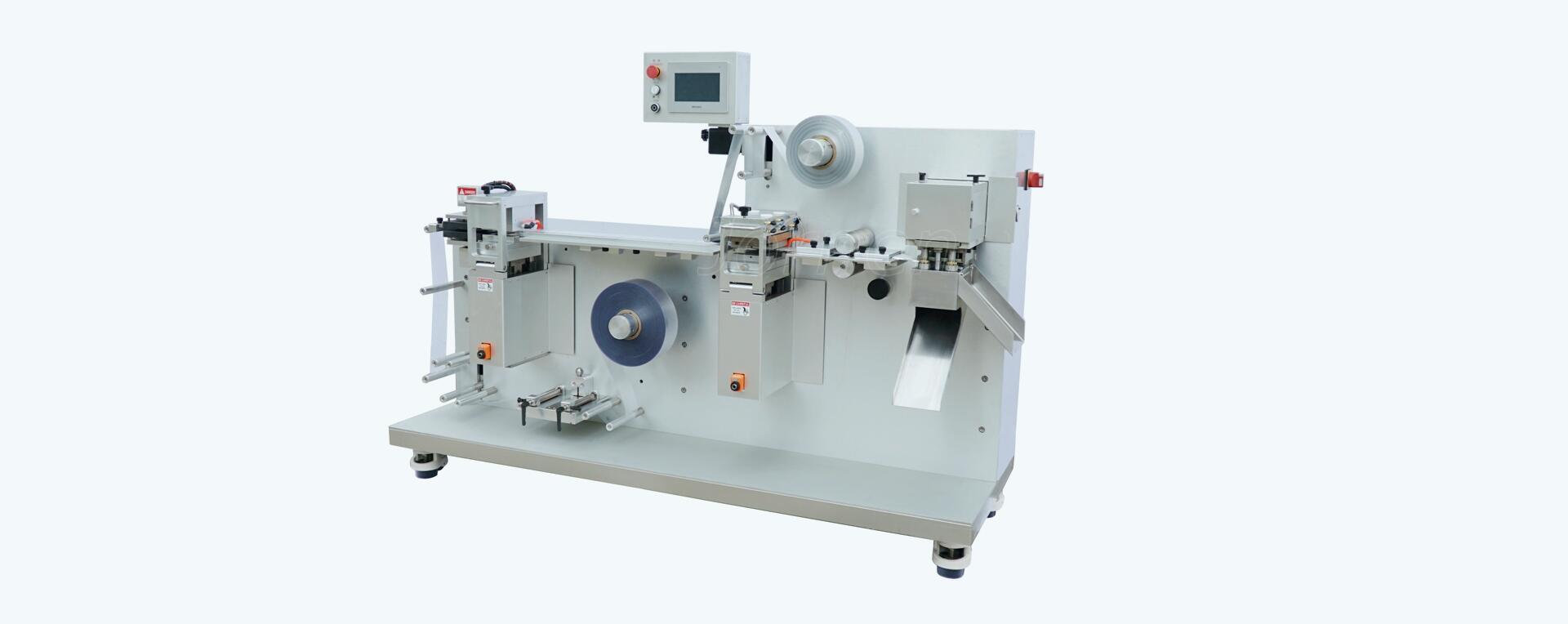

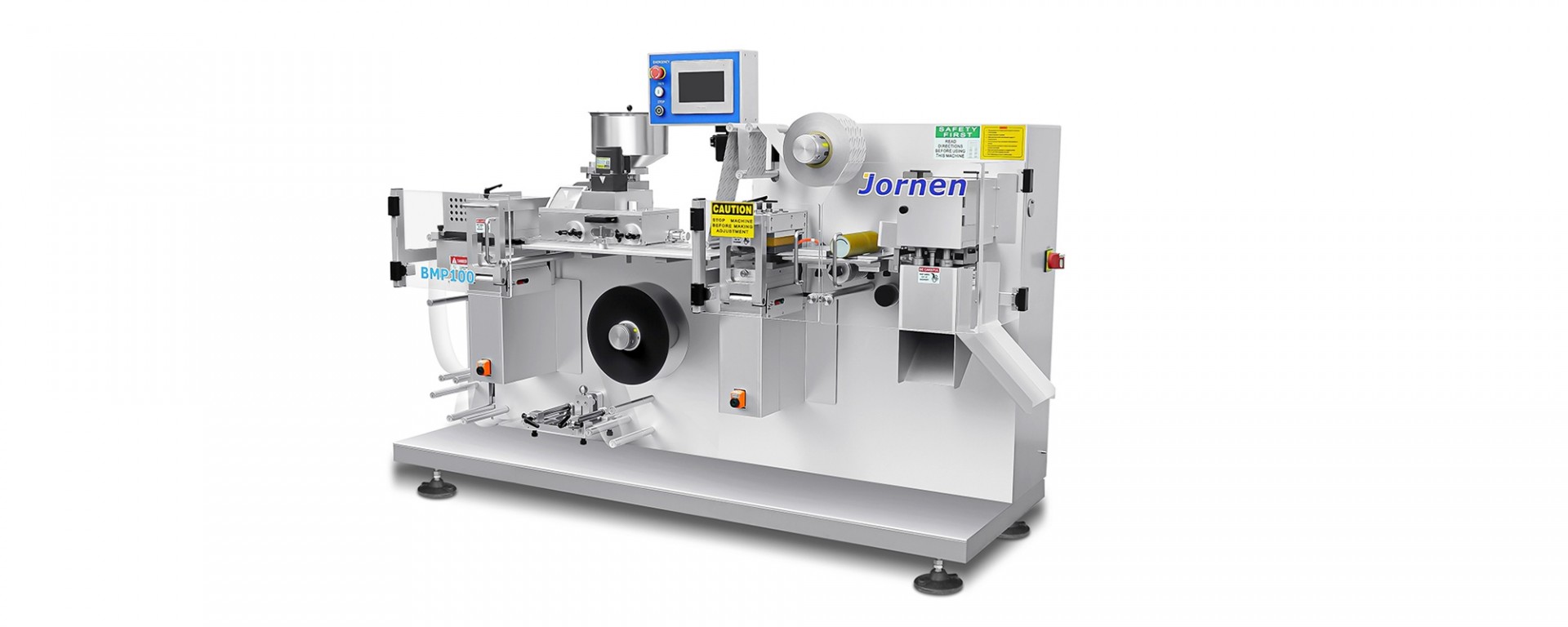

BMP100 | Lab Balcony Platen

BMP100 | Lab Balcony Platen

The BMP100 is a highly compact, precision-engineered blister packaging machine tailored specifically for pharmaceutical R&D laboratories and clinical trials. Designed to meet the stringent demands of low-volume, high-quality packaging, its cGMP-compliant balcony structure ensures optimal hygiene and allows for a complete clean in just five minutes.

By bringing packaging capabilities in-house, the BMP100 empowers research facilities to accelerate their time-to-market and eliminate frustrating outsourcing delays. The system features tool-less format changeovers and user-friendly operation requiring no specialist engineers, delivering exceptional efficiency, stable servo-driven indexing, and robust performance within an ultra-compact footprint.

Compact Design: Ideal for pharmaceutical R&D lab use.

On-Demand Packaging: Avoids frustrating outsourcing delays.

User-Friendly: Easy operation needs no specialist engineer.

Tool-Less Changeover: Fast format changes in just minutes.

Balcony Structure: Fully compliant with cGMP standards.

Precise Servo Indexing: Stable and accurate running.

Clean Discharge: Blister and waste are separated neatly.

Full Enclosure: Fully enclosed safety doors (optional).

▶ Explore more customer cases.

Gallery
  • GMP-compliant balcony and cantilever layout of the Jornen BMP100 laboratory blister machine for easy cleaning.

    Pharmaceutical GMP-compliant cantilever (balcony type) layout for easy cleaning.

  • Cantilever balcony style sealing station of the Jornen BMP100 laboratory blister machine.

    The cantilever (balcony type) style sealing station.

  • Servo motor index system of the Jornen BMP100 laboratory blister machine for precise and stable feeding.

    The index system adopts a precise servo motor to achieve stable, accurate running and allows blister length to be set freely.

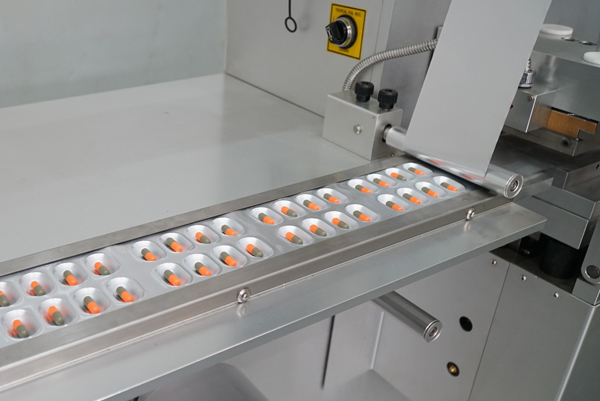

  • Blister cutting station and waste material discharge of the Jornen BMP100 laboratory blister machine.

    The Cutting Station discharge the blister cards and waste material in a different direction.

  • Tool-less and straightforward format changeover on the Jornen BMP100 laboratory blister machine.

    Extremely straightforward format changeover.

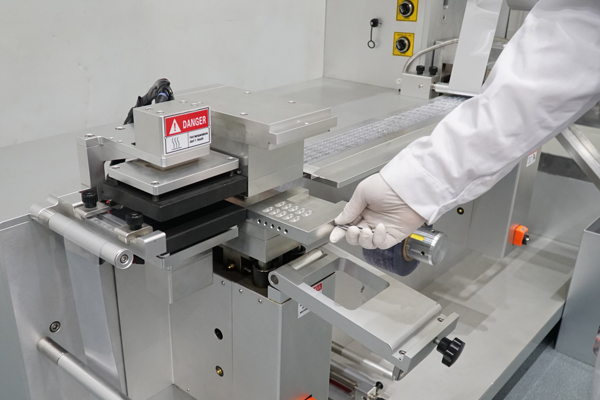

  • Tool-free changeover of format parts on the Jornen BMP100 laboratory blister machine to reduce downtime.

    Tool-free changeover of format parts reduces down-time between production batches.

  • Fast and easy set-up of the Jornen BMP100 laboratory blister machine requiring no specialist knowledge.

    Fast & easy set-up – no specialist knowledge is required to operate.

Main Technical Parameters
Max. Speed: 20 punches/min.
Max. Output: 20 blisters/min. ( blister size 57×80mm)
Max. Forming Area: 100×120mm
Material Max. width: 100 mm
Machine Power: 2.3kw
Machine Dimension: 1900×717×1383mm
Machine Weight: 450kg

Blister Pack & Blister Packaging Machine Guide

Blister packaging serves as a cornerstone within the pharmaceutical sector for securing solid-dose medications, primarily executed through either thermoforming or cold-forming procedures.

In contrast to cold-forming—which utilizes metal stretching—thermoforming processes heat a continuous web of plastic film until pliable, subsequently forcing it into shaped cavities via compressed air or vacuum assistance. Thermoformed plastic blisters are widely favored for their crystal-clear visibility, higher production output speeds, and cost-efficiency. However, because standard plastics lack an absolute metal barrier, they allow minor vapor and gas permeation over time, meaning they are typically paired with high-barrier lidding foils to protect moisture-sensitive formulations.
