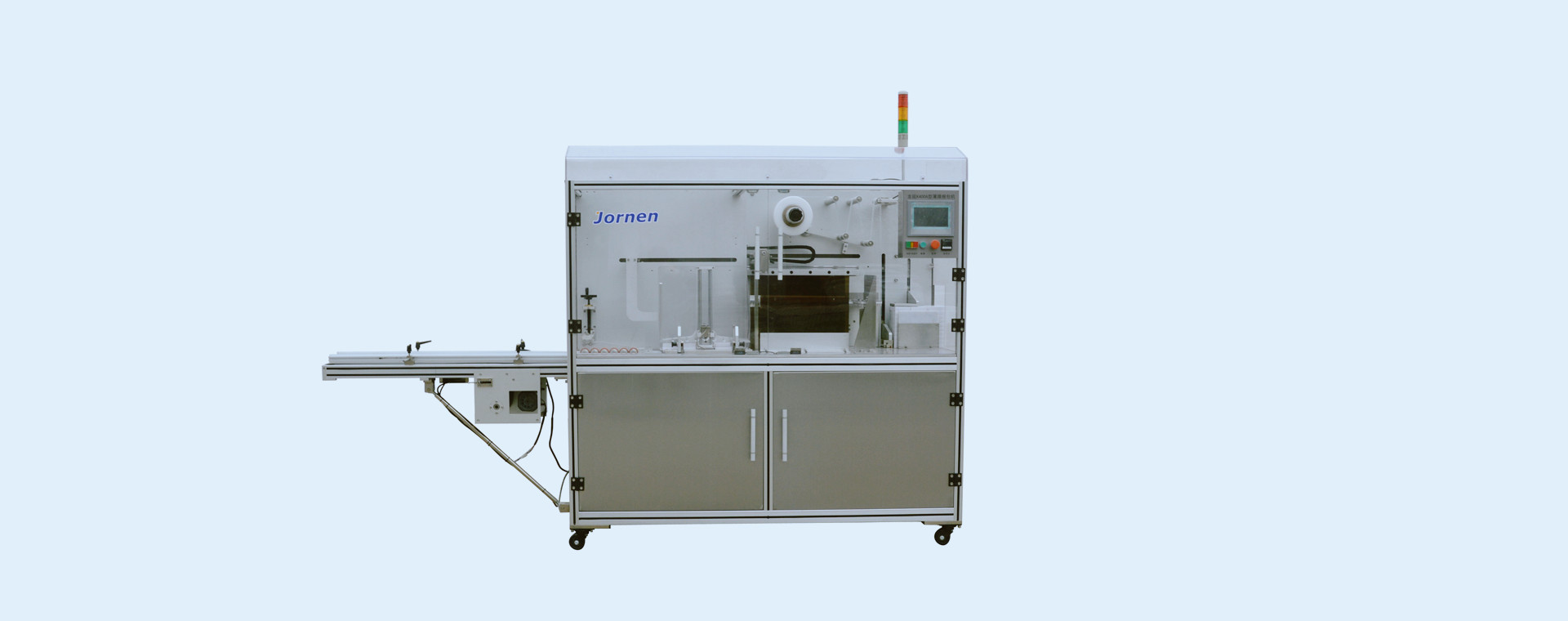

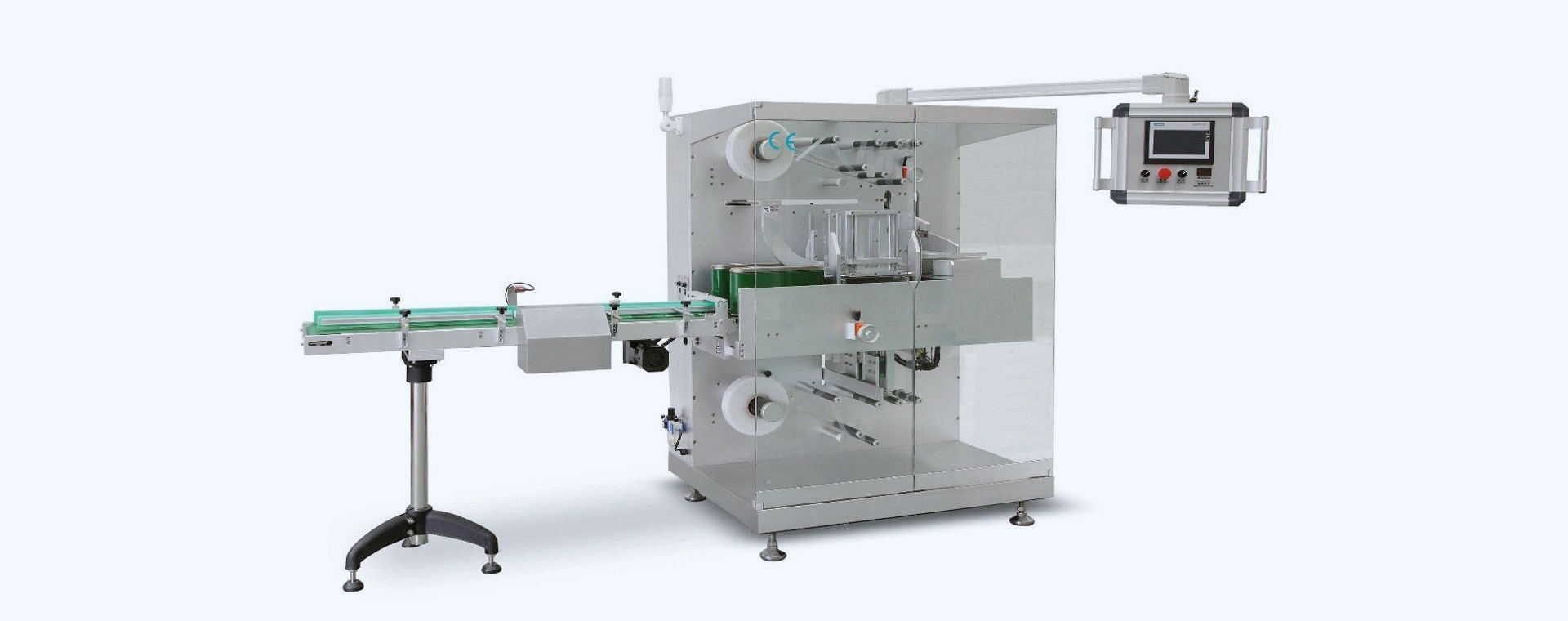

Stretch-Banding Machine

The Stretch-Banding Machine is an End-of-Line Packaging Machine. It can group together or stack cartons (or similar shaped objects) to form larger units. These are then tightly wrapped in plastic film. Compared with shrink-wrapper and overwrapper, this machine is energy-saving as it does not require heating up. It saves 50% of film materials because it partially covers the packaging. It can be connected to a packaging line with Blister Machines, Cartoners and Case Packers.

Main Technical Parameters
Model LY-K180 LY-K260 LY-K280 LY-K380 LY-K400  LY-K500
Output 15bundles/min. 20bundles/min. 25bundles/min. 20bundles/min. 30bundles/min. 35bundles/min.
Max. Packaging Size (L*W*H ) mm  200×130×280  200×130×280  280×200×130  380×200×120  200×150×250  280×200×100
Min. Packaging Size (L*W*H) mm 50×50×30 50×50×30 50×50×30 80×50×30 60×50×40 80×20×40
Machine Power 0.5kw 0.5kw 0.5kw 0.6kw 0.7kw  1kw
Air pressure (Mpa) 0.5-0.6 0.5-0.6 0.5-0.6 0.5-0.6 0.6-0.8 0.6~0.8
Machine Dimension (mm) 1600×600×1500 1600×600×1500 2200×600×1500 2350×600×1500 2880×800×1600 2600×845×1825
Machine Weight 300kg 300kg 350kg 400kg 600kg 800kg
