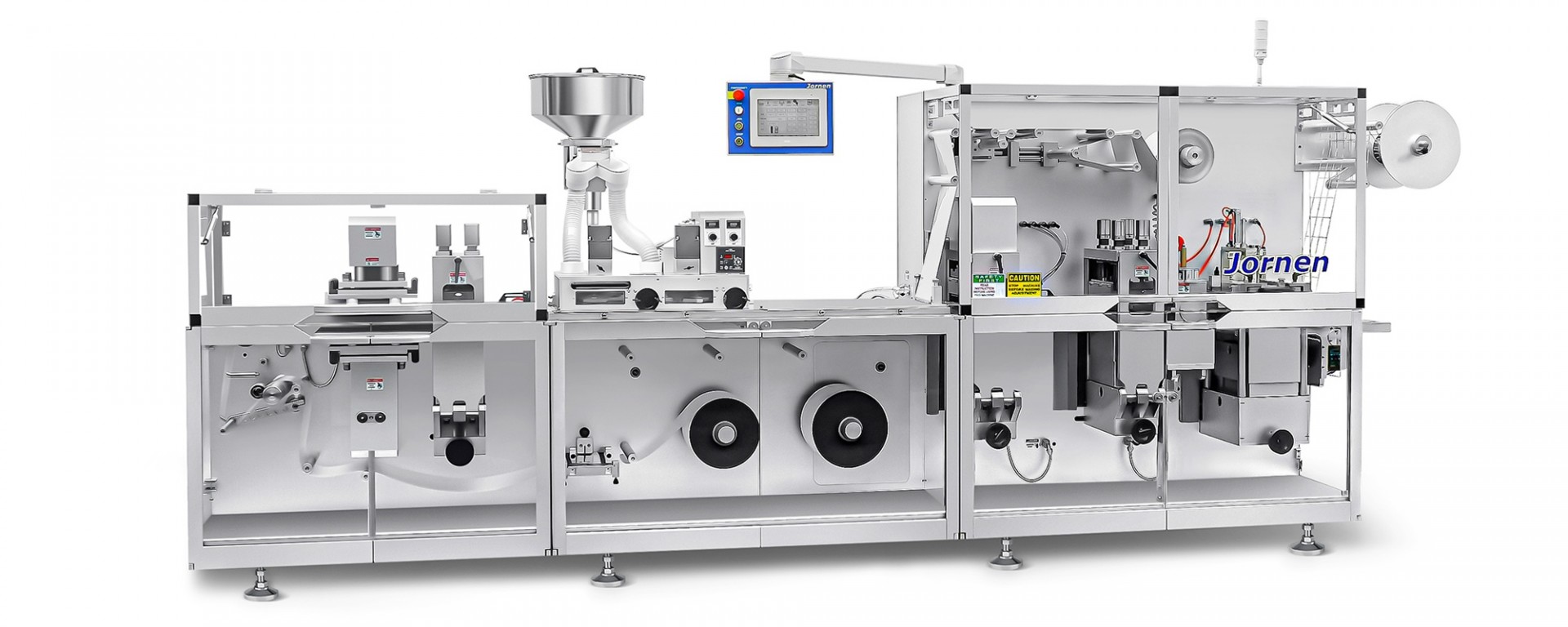

BMP270 | Pro Balcony Platen

BMP270 | Pro Balcony Platen

Engineered for maximum flexibility, this advanced blister packaging machine utilizes state-of-the-art platen sealing technology to deliver the ultimate solution for multi-variety, medium-batch production. Compared to rotary-type blister machines that pursue high-speed output, this platen architecture is specifically optimized for greater flexibility and the demands of frequent product changeovers. It flawlessly accommodates products with complex or irregular shapes, significantly broadening your packaging capabilities for specialized pharmaceutical applications.

Built upon a cGMP-compliant balcony (cantilever) layout, the system enforces a strict vertical partition that completely isolates the rear mechanical drive from the front operating zone. This architectural advantage eliminates the risk of cross-contamination while making pharmaceutically compliant cleaning and daily maintenance practically effortless. Furthermore, an advanced gas-hydraulic pressure cylinder is integrated to apply uniform, powerful sealing pressure, ensuring reliable and flawless large-area heat sealing every time.

To maximize production efficiency, the machine is equipped with intuitive digital adjustments and a built-in forming material splicer. The central touch-screen interface allows operators to set blister indexing freely, while precise digital positioners and tool-less quick-fitting mechanisms enable highly straightforward format changeovers.

Platen Sealing: Enhanced adaptability for versatile packaging.

Balcony Layout: cGMP architecture isolates contamination risks.

Cantilever Stations: Simplifies cleaning and routine maintenance.

Film Heating: Even heat distribution reduces web shrinkage.

Servo Indexing: Ensures highly accurate and stable web pulling.

Slide-Out Tooling: Plug-and-play design for straightforward changes.

Dual Forming Reels: Holds two rolls for swift material replacement.

Auto Splicing: Optional device ensures uninterrupted production.

▶ Explore more customer cases.

Gallery
  • Dual forming material reels—one in use and one on standby—on the Jornen BMP270 blister machine.

    Accommodates two reels of forming material: one in use and one on standby.

  • Integrated forming material splicer on the Jornen BMP270 blister machine for efficient material replacement.

    The machine is equipped with an integrated forming material splicer for efficient material replacement.

  • Film heating forming station on the Jornen BMP270 blister machine featuring uniform temperature, low energy consumption, and minimal shrinkage.

    Forming station adopts film heating. Uniform temp, low energy, minimal shrinkage.

  • Universal feeder on the Jornen BMP270 blister machine capable of feeding capsules, flat tablets, and oval tablets.

    The universal feeder can feed almost all items such as capsules, flat tablets, oval tablets and capsule tablets, etc.

  • Integrated product inspection system with a color camera on the Jornen BMP270 blister machine for detecting and rejecting defective blisters.

    Integrated product inspection system with a color camera can reject faulty blisters automatically (optional).

  • Gas-hydraulic sealing pressure control system with freely adjustable pressure on the Jornen BMP270 blister machine.

    Sealing pressure adopts the gas-hydraulic pressure; the pressure can be set freely.

  • Integrated lidding material splicer on the Jornen BMP270 blister machine for efficient material replacement.

    The machine is equipped with an integrated lidding material splicer for efficient material replacement.

  • Auto-rising heating mold on the Jornen BMP270 blister machine to protect material when the machine stops.

    When the machine stops, the heating mold can rise automatically.

  • GMP-compliant cantilever layout on the Jornen BMP270 blister machine for easy and pharmaceutically compliant cleaning.

    GMP-compliant cantilever layout for easy, pharmaceutically compliant cleaning.

  • Freely adjustable index setting via touch screen on the Jornen BMP270 blister machine for reducing format changeover time.

    The index can be set freely through the Touch Screen User Interface, which reduces the time for a format changeover.

  • Automatic discharge of blister cards on the Jornen BMP270 blister machine, designed to connect with a cartoning machine.

    The blister cards are discharged automatically and can connect with a cartoning machine.

  • Tool-free format changeover at the forming station on the Jornen BMP270 blister machine for quick setup.

    Tool-free format changeover (the forming station).

  • Tool-free format changeover at the sealing station on the Jornen BMP270 blister machine for quick setup.

    Tool-free format changeover (the sealing station).

  • Tool-free format changeover at the cutting station on the Jornen BMP270 blister machine for quick setup.

    Tool-free format changeover (the cutting station).

  • Digital position indicators on the Jornen BMP270 blister machine for precise and straightforward format changeover.

    Adopts digital position indicators for straightforward format changeover.

  • Signature navy blue and white aluminum control enclosure with a color touch screen HMI on the Jornen BMP270 blister machine.

    The aluminum control enclosure and color touch screen user interface.

Main Technical Parameters
Max. Speed: 50punches/min
Max. Output: 200 blisters/min. (blister size 57×80 mm)
Max. Forming Area: 265×160mm
Material Max. width: 275 mm
Machine Power: 13.6kw
Machine Dimension: 4500×1200×2100mm（4 stations） 4700×1200×2100mm (5 stations)
Machine Weight: 2200kg

Blister Pack & Blister Packaging Machine Guide

Blister packaging is widely used in the pharmaceutical industry for solid-dose medications, with the process primarily categorized as thermoforming or cold-forming.

During cold-forming operations, an aluminum laminate web is mechanically pressed into the cavity mold with a punch stamp, stretching and locking the material into the desired shape. Commonly designated as Alu-Alu or cold-form blisters, their greatest asset is the impermeable metal barrier they provide against moisture and light, effectively maximizing drug stability and shelf life. On the other hand, trade-offs include lower output speeds than plastic thermoforming, opaque packaging that prevents bottom-up visual inspection, and a larger overall footprint because aluminum sheets cannot form sharp 90-degree draft angles.
