BMP100 | Lab Balcony Platen

BMP100 | Lab Balcony Platen

The BMP100 is a highly compact, precision-engineered blister packaging machine tailored specifically for pharmaceutical R&D laboratories and clinical trials. Designed to meet the stringent demands of low-volume, high-quality packaging, its cGMP-compliant balcony structure ensures optimal hygiene and allows for a complete clean in just five minutes.

By bringing packaging capabilities in-house, the BMP100 empowers research facilities to accelerate their time-to-market and eliminate frustrating outsourcing delays. The system features tool-less format changeovers and user-friendly operation requiring no specialist engineers, delivering exceptional efficiency, stable servo-driven indexing, and robust performance within an ultra-compact footprint.

Highly compact design ideal for pharmaceutical R&D labs.

Enables in-house packaging to eliminate outsourcing delays.

User-friendly operation requires no specialized engineers.

Tool-less format changeovers can be completed in minutes.

Balcony structure is fully compliant with cGMP standards.

Precise servo indexing ensures stable and accurate running.

Clean discharge mechanism separates blisters and waste neatly.

Optional fully enclosed safety doors provide added protection.

▶ Explore more customer cases.

Gallery

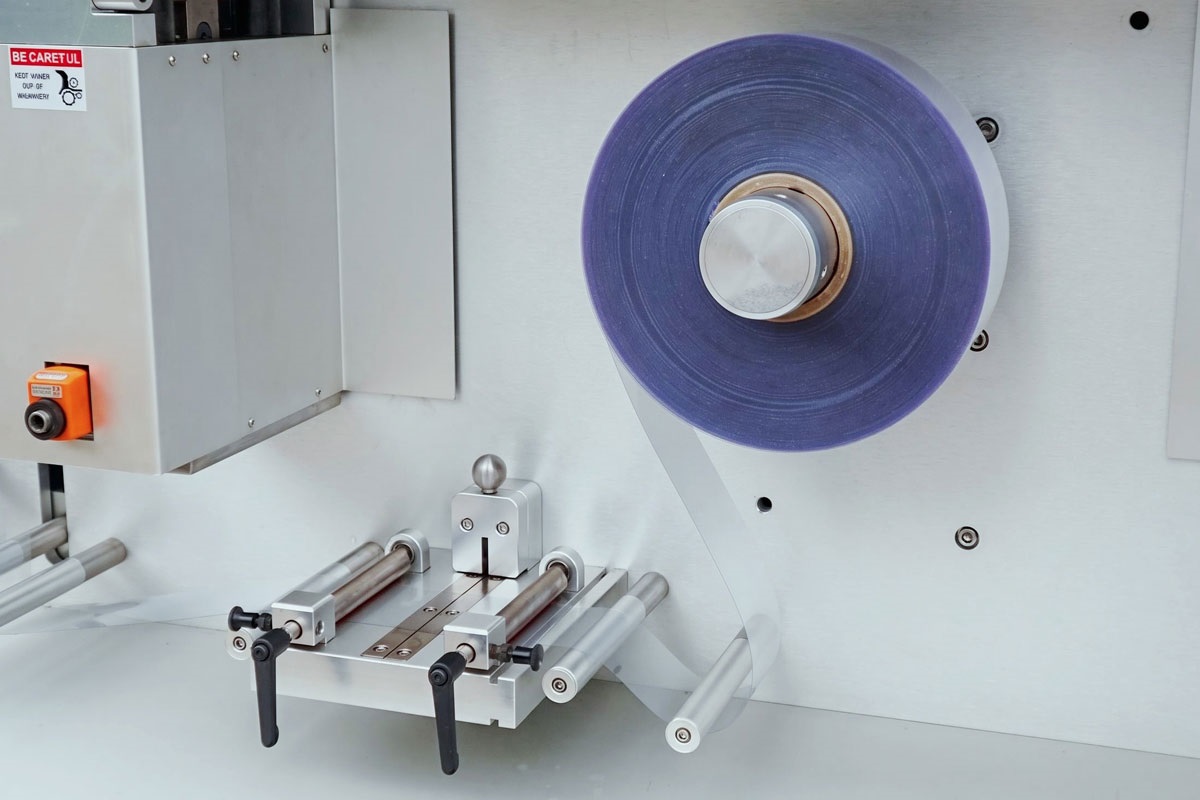

  • Forming material splicer module on the Jornen BMP100 laboratory blister machine for efficient roll change.

    Equipped with integrated forming material splicer to enhance efficiency during material replacement.

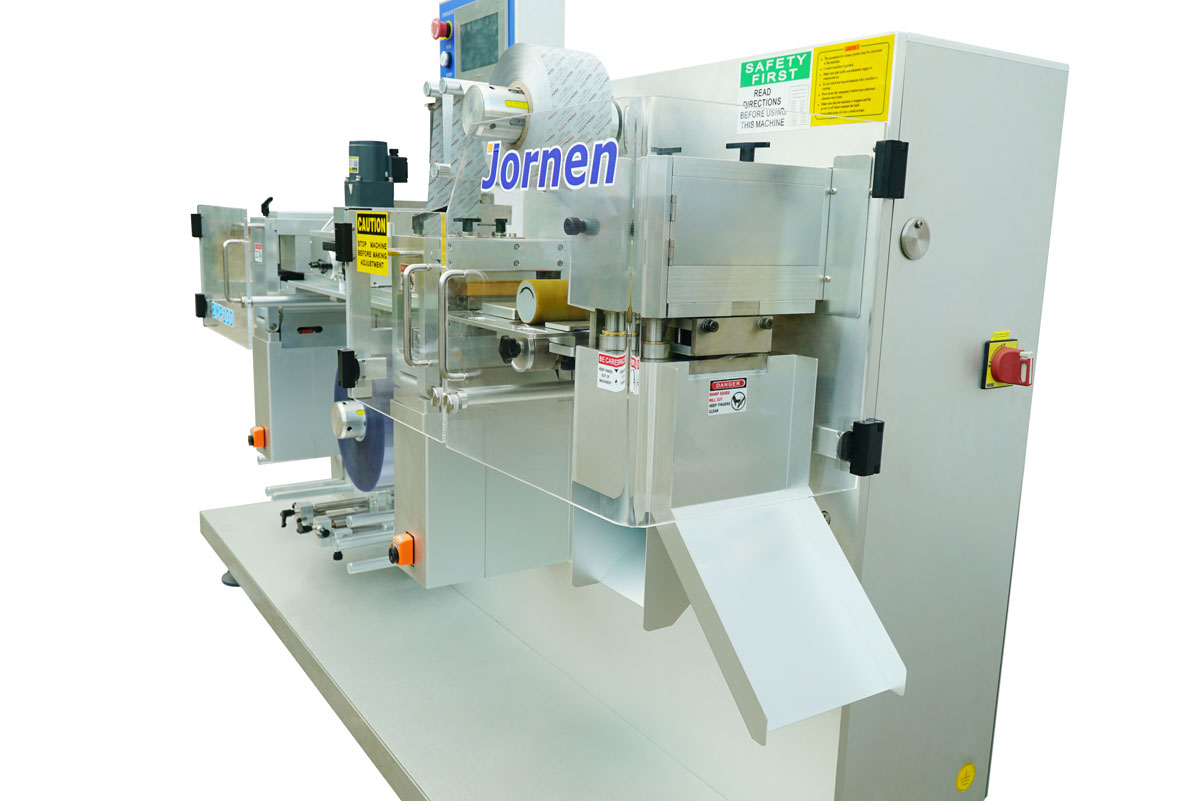

  • GMP-compliant balcony and cantilever layout of the Jornen BMP100 laboratory blister machine for easy cleaning.

    Pharmaceutical GMP-compliant cantilever (balcony type) layout for easy cleaning.

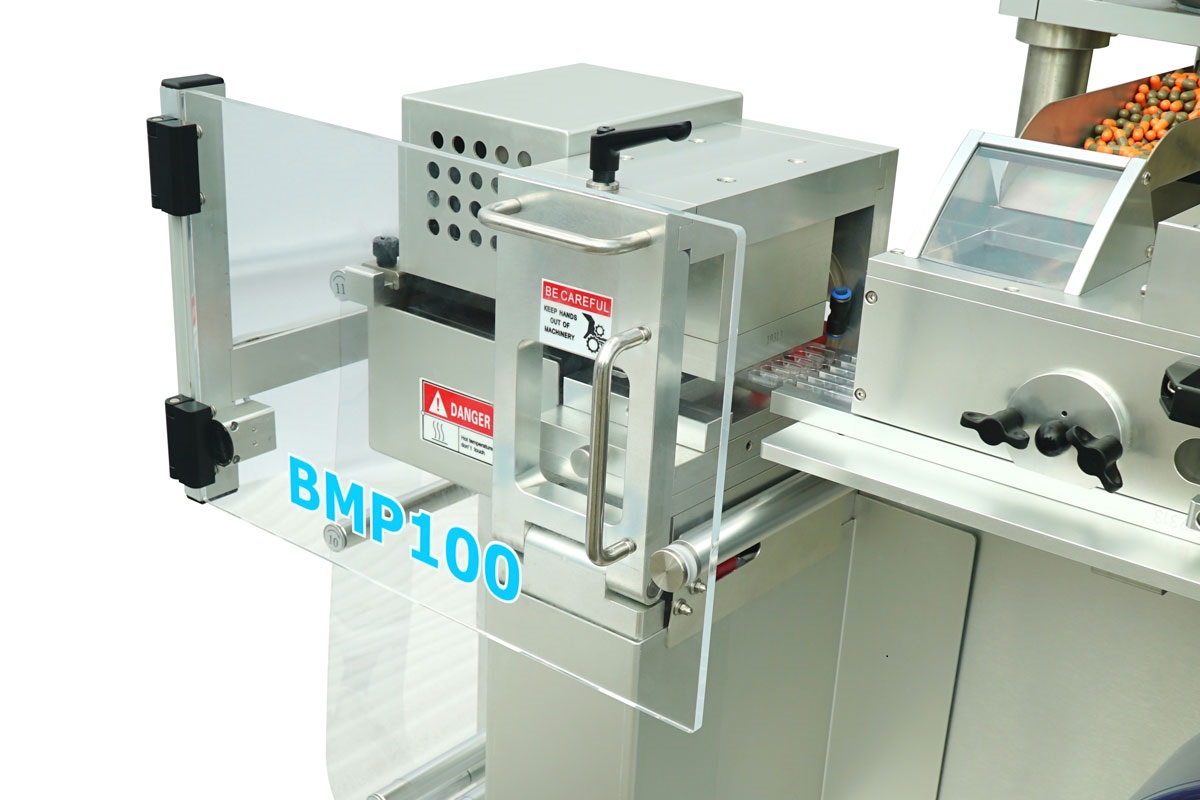

  • Blister forming station of the Jornen BMP100 laboratory blister machine for thermoformed and cold-formed packs.

    The Forming Station for all types of blister packs, including thermoformed and cold-formed.

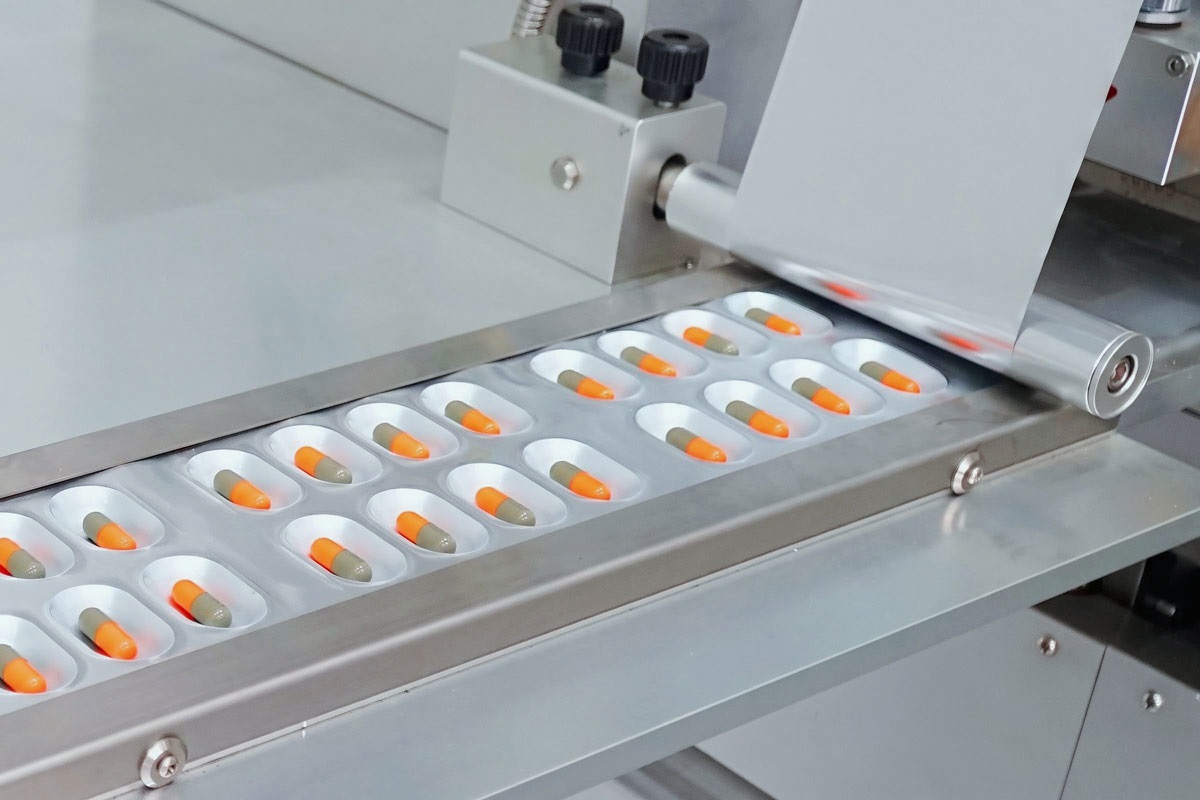

  • Product feeding area of the Jornen BMP100 laboratory blister machine showing solid dose distribution.

    The feeding area designed for accurate and smooth product distribution.

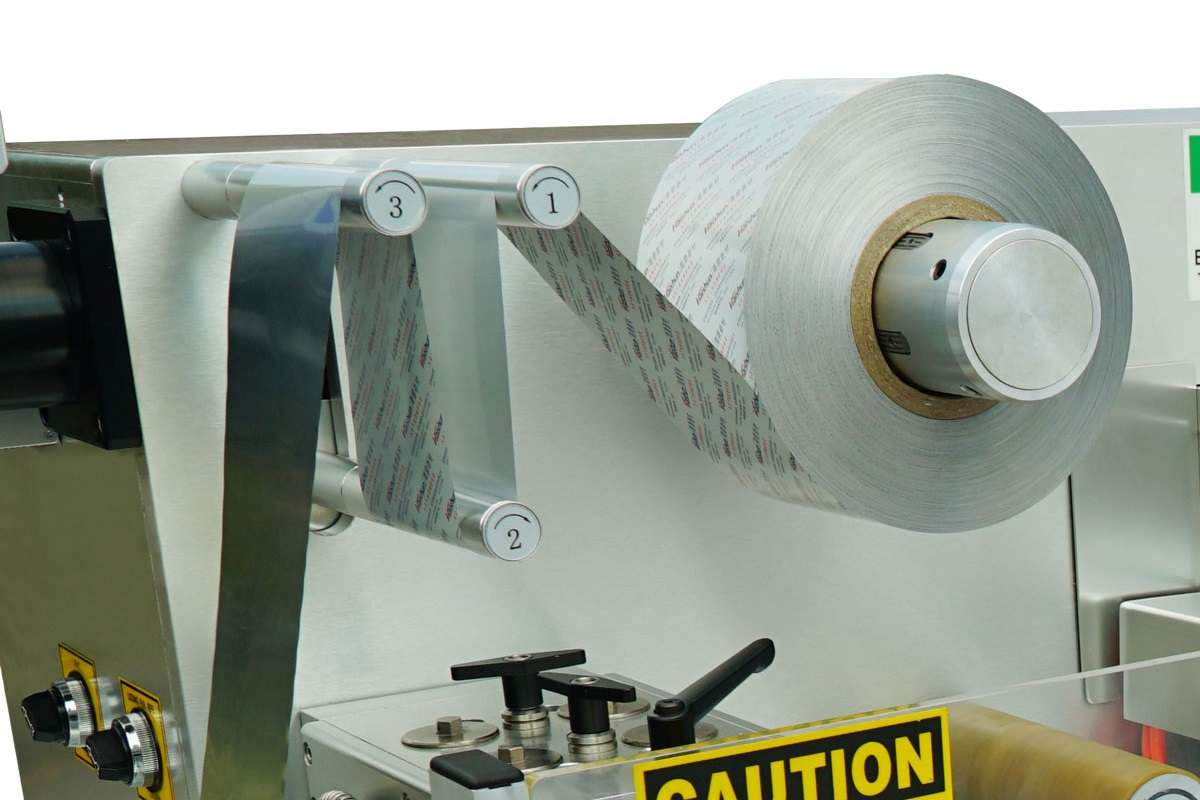

  • Lidding material unwinding and guide rollers of the Jornen BMP100 laboratory blister machine.

    The lidding material is unwound from the reel and guided through the guide rollers to the sealing station.

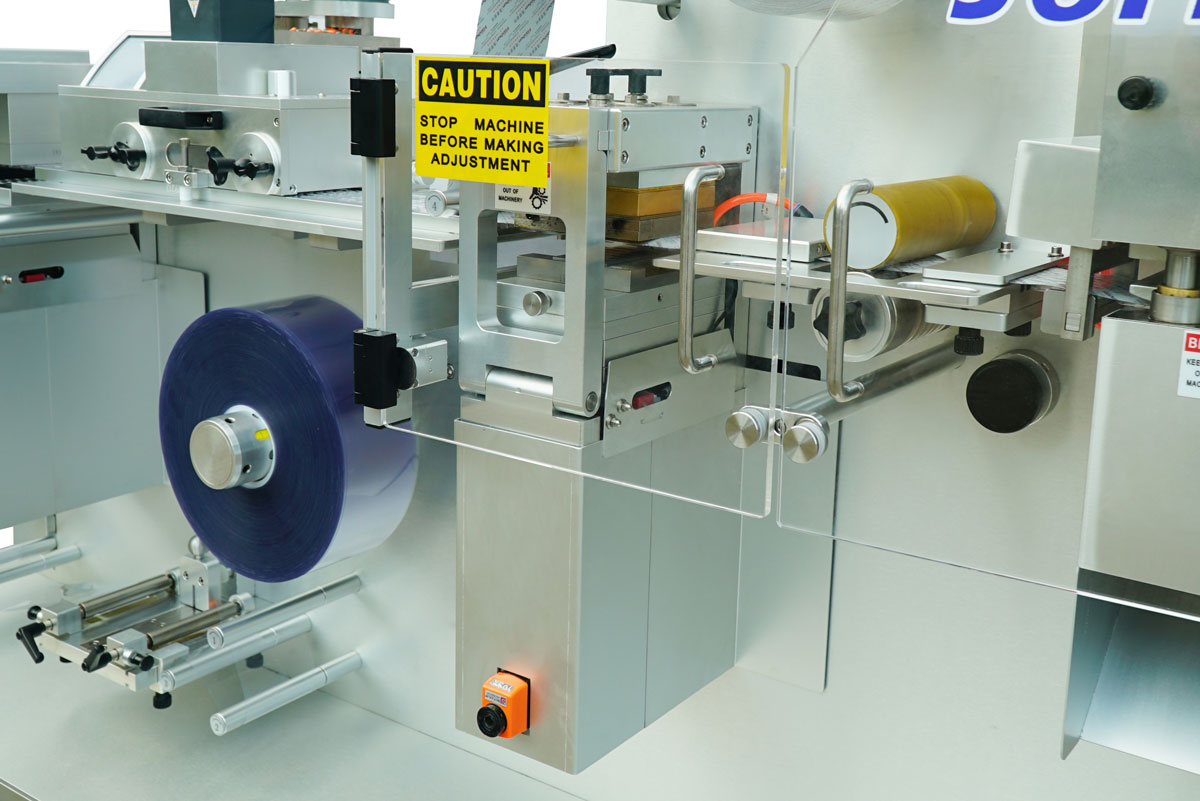

  • Cantilever balcony style sealing station of the Jornen BMP100 laboratory blister machine.

    The cantilever (balcony type) style sealing station.

  • Servo motor index system of the Jornen BMP100 laboratory blister machine for precise and stable running.

    The index system adopts a precise servo motor to achieve stable, accurate running and allows blister length to be set freely.

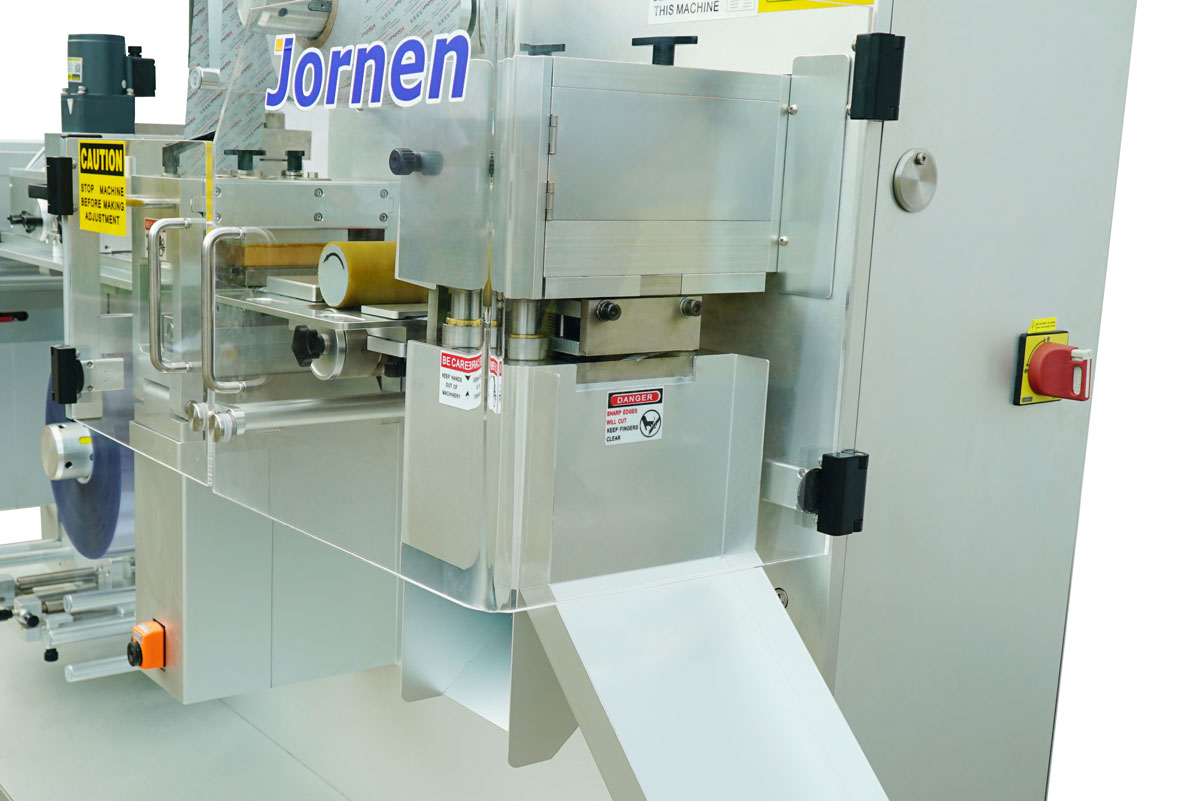

  • Blister cutting station and waste material discharge of the Jornen BMP100 laboratory blister machine.

    The Cutting Station discharge the blister cards and waste material in a different direction.

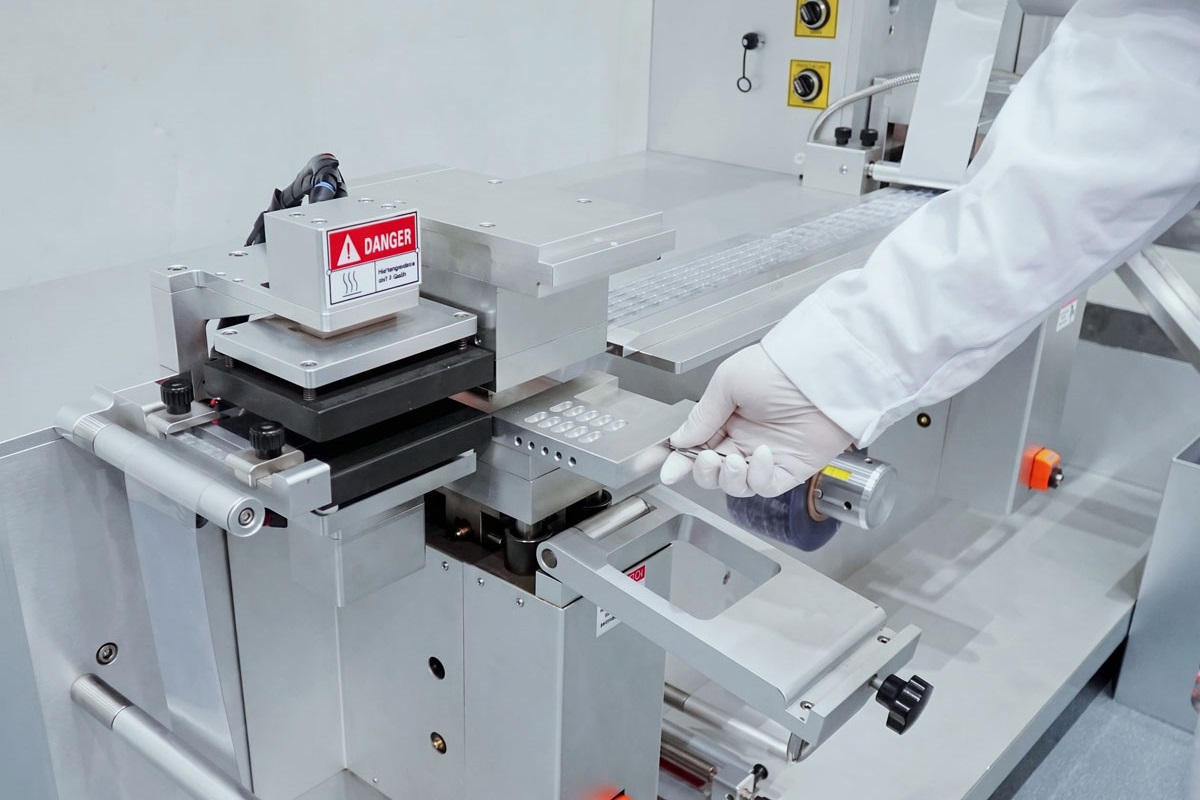

  • Tool-less and straightforward format changeover on the Jornen BMP100 laboratory blister machine.

    Extremely straightforward format changeover.

Main Technical Parameters
Max. Speed: 20 punches/min.
Max. Output: 20 blisters/min. ( blister size 57×80mm)
Max. Forming Area: 100×120mm
Material Max. width: 100 mm
Machine Power: 2.3kw
Machine Dimension: 1900×717×1383mm
Machine Weight: 450kg

Blister Pack & Blister Packaging Machine Guide

Blister packaging serves as a cornerstone within the pharmaceutical sector for securing solid-dose medications, primarily executed through either thermoforming or cold-forming procedures.

In contrast to cold-forming—which utilizes metal stretching—thermoforming processes heat a continuous web of plastic film until pliable, subsequently forcing it into shaped cavities via compressed air or vacuum assistance. Thermoformed plastic blisters are widely favored for their crystal-clear visibility, higher production output speeds, and cost-efficiency. However, because standard plastics lack an absolute metal barrier, they allow minor vapor and gas permeation over time, meaning they are typically paired with high-barrier lidding foils to protect moisture-sensitive formulations.

Want to dive deeper into blister packaging and advanced blister machine technologies? Read our ultimate guide to blister packaging machines.

40 years’ expertise in pharmaceutical packaging.
We deliver flexible, complete solutions for blistering, cartoning, and integrated blister lines for your pharma packaging —
learn more about us.
