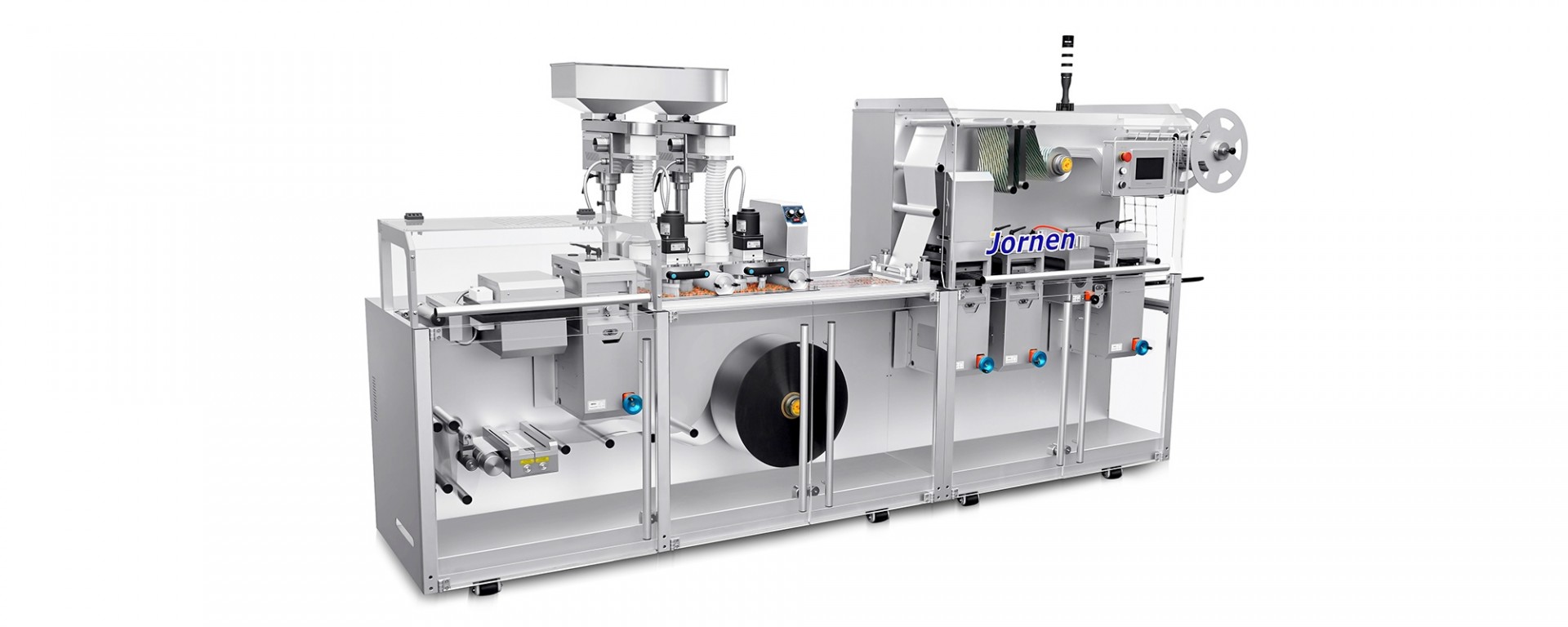

BMP180 | Compact Balcony Platen

BMP180 | Compact Balcony Platen

Designed for maximum space efficiency, this ultra-compact blister packaging machine is the ultimate solution for agile, small-batch pharmaceutical production. Utilizing advanced platen sealing technology, it delivers exceptional versatility and seamlessly accommodates frequent product switches with straightforward operation.

Engineered with a cGMP-compliant balcony (cantilever) architecture, the system enforces a strict vertical partition that completely isolates the rear drive section from the front operating zone. Intelligent features like intuitive touch-screen servo indexing, precise digital positioners, and a fast-lock lidding material replacement mechanism guarantee effortless cleaning and tool-less straightforward format changeovers.

Platen Sealing: Broader versatility and flexibility.

Balcony Layout: cGMP design prevents cross-contamination.

Cantilever Stations: Highly convenient daily maintenance.

Film Heating: Uniform temp, low energy, minimal shrinkage.

Servo Indexing: Precise and repeatable web adjustment.

Quick-Release Molds: Plug-and-play setup for effortless swaps.

Flexible Feeding: Configurable feeders for various products.

Gas-Hydraulic Sealing: Flexible, consistent sealing pressure.

Advanced Packaging Technologies

Integrated Blister & Cartoning Line
Live Trade Show Demonstration

▶ Explore more customer cases.

Gallery

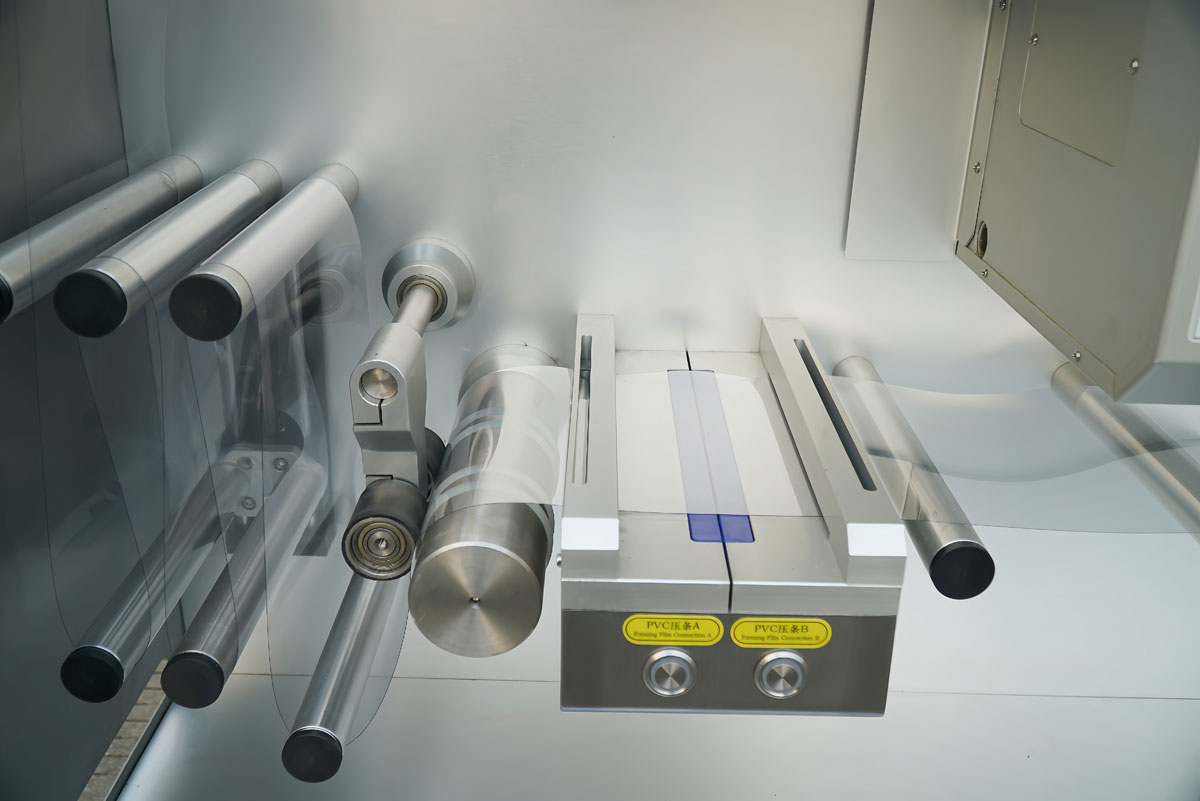

  • Integrated forming material splicer on the JORNEN BMP180 compact blister machine to enhance efficiency during film replacement

    BMP180 integrated splicer for tool-less film replacement and minimized downtime.

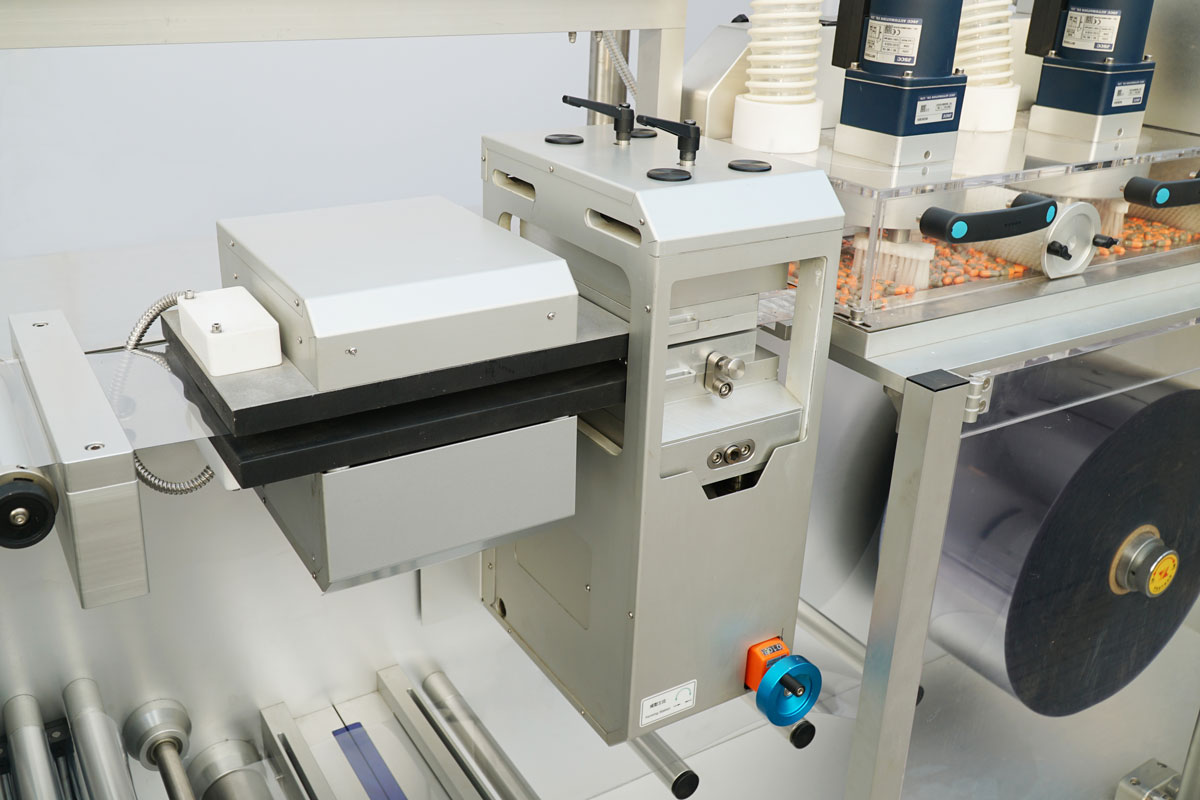

  • Forming station on the JORNEN BMP180 compact blister machine ensuring uniform material heating and precise cavity shaping

    BMP180 forming station ensures uniform heating and precise blister shaping.

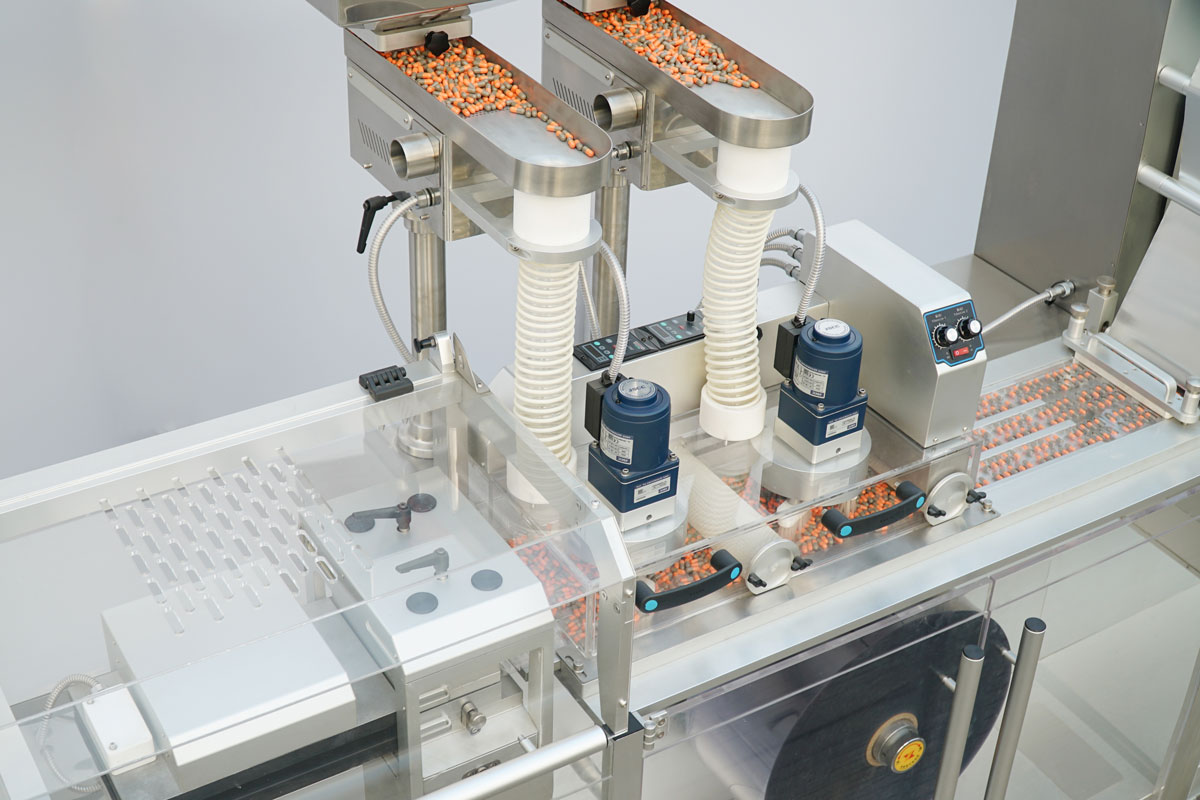

  • Universal feeding system on the JORNEN BMP180 blister machine enabling flexible loading of various solid dose formats

    BMP180 universal feeder ensuring flexible and reliable solid dose loading.

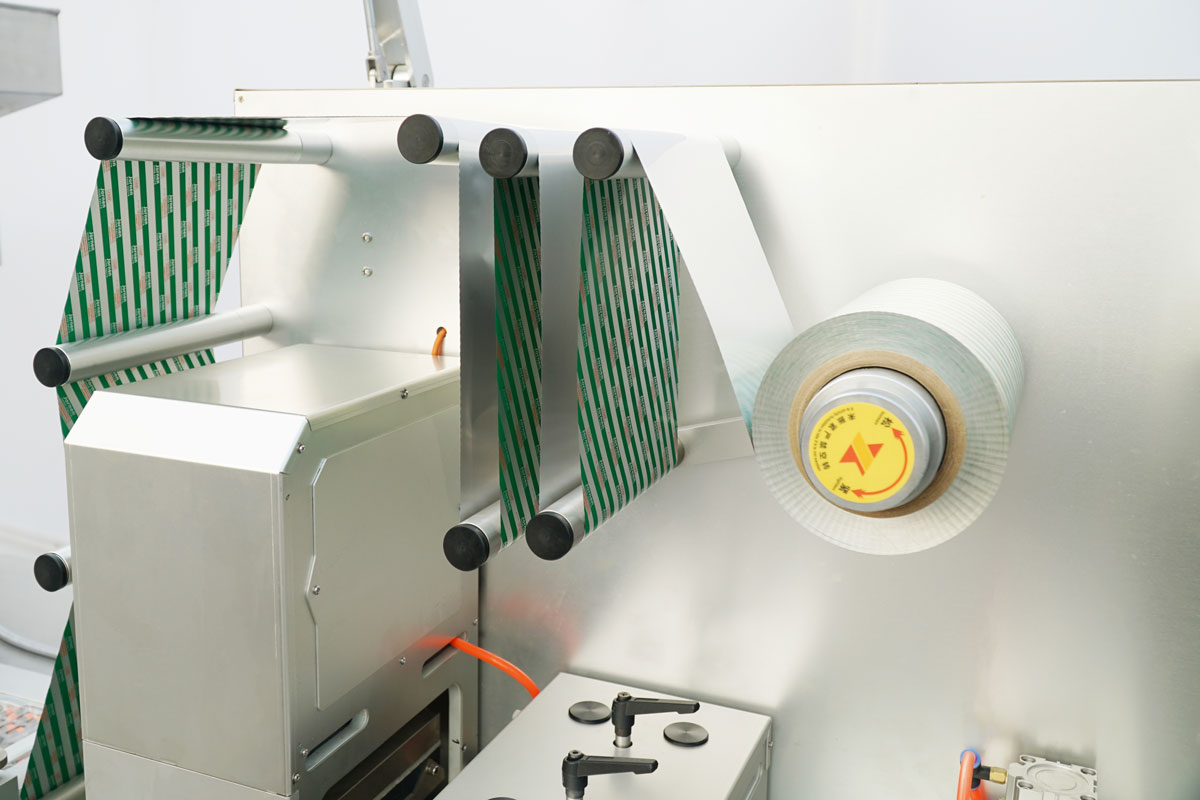

  • Fast-lock lidding foil replacement mechanism on the JORNEN BMP180 compact blister machine

    Fast-lock lidding foil mechanism for effortless, tool-less format changeovers.

  • Platen sealing station on the JORNEN BMP180 blister machine delivering consistent gas-hydraulic sealing pressure

    Gas-hydraulic platen sealing station ensures consistent pressure and superior seal integrity.

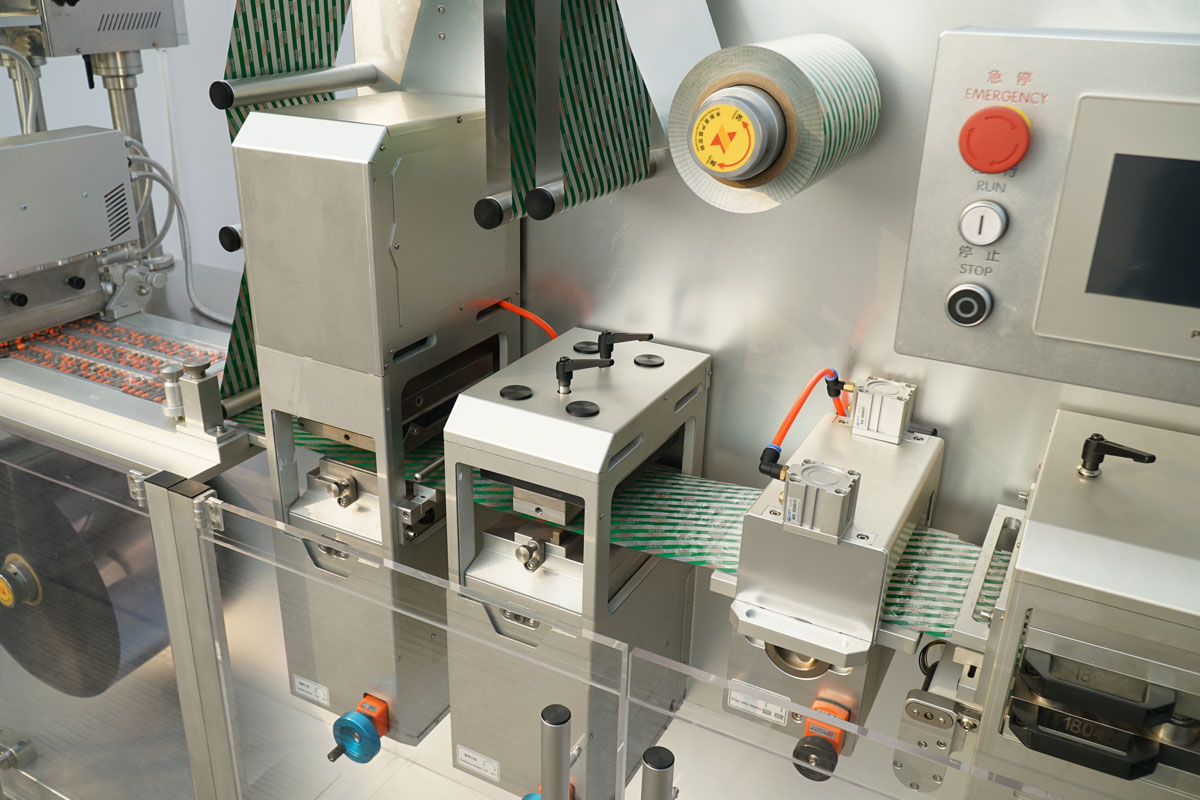

  • Embossing station on the JORNEN BMP180 compact blister packaging machine for precise batch coding and expiration dating

    BMP180 embossing station for precise, tool-less batch coding and dating.

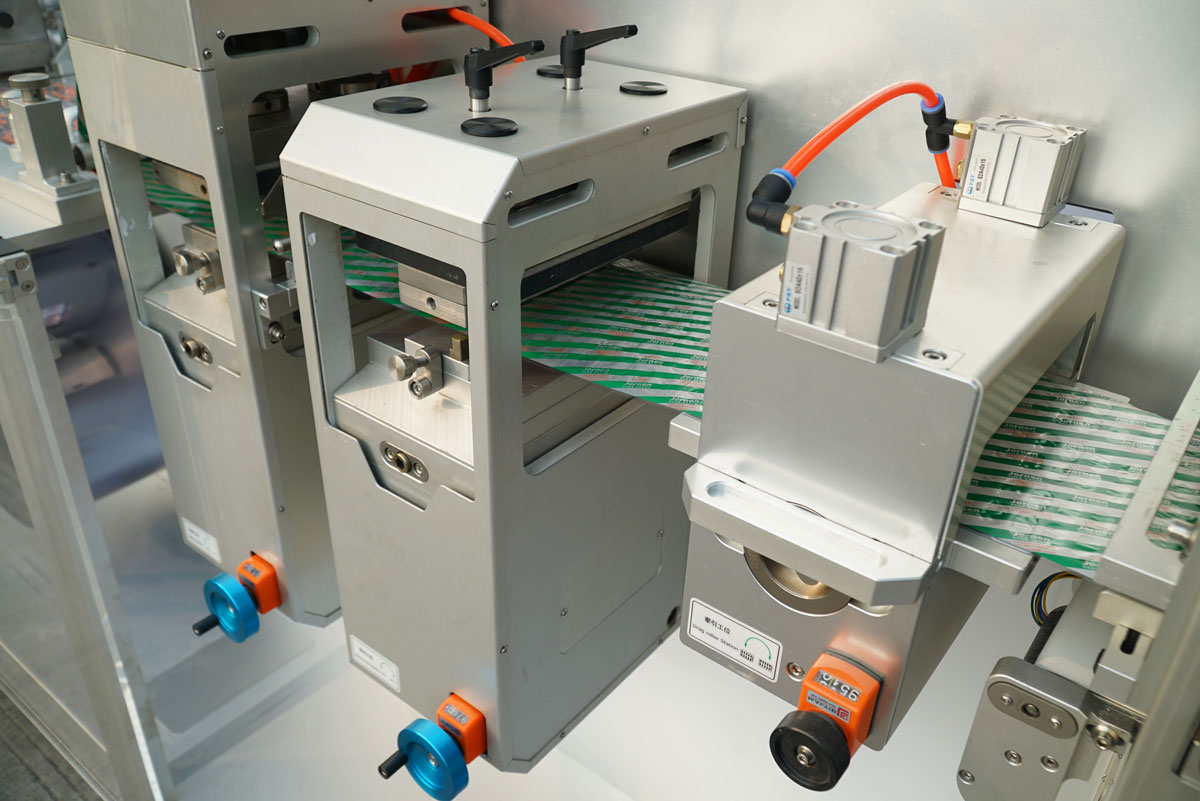

  • Servo-driven indexing station on the JORNEN BMP180 blister machine for precise and repeatable web advancement

    Servo-driven indexing ensures precise web advancement on the BMP180.

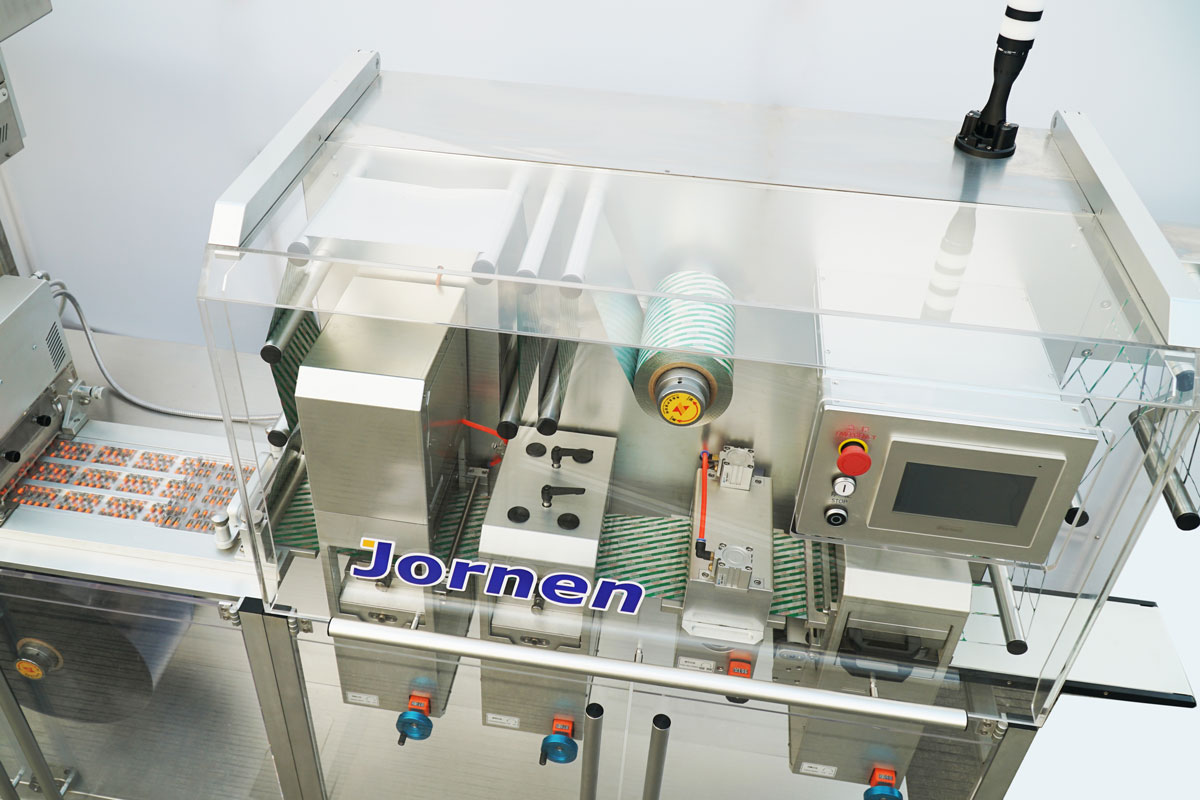

  • Transparent interlocked safety enclosure on the JORNEN BMP180 blister machine ensuring operator protection and cGMP compliance

    Transparent safety enclosure ensures operator protection during the blister packaging process.

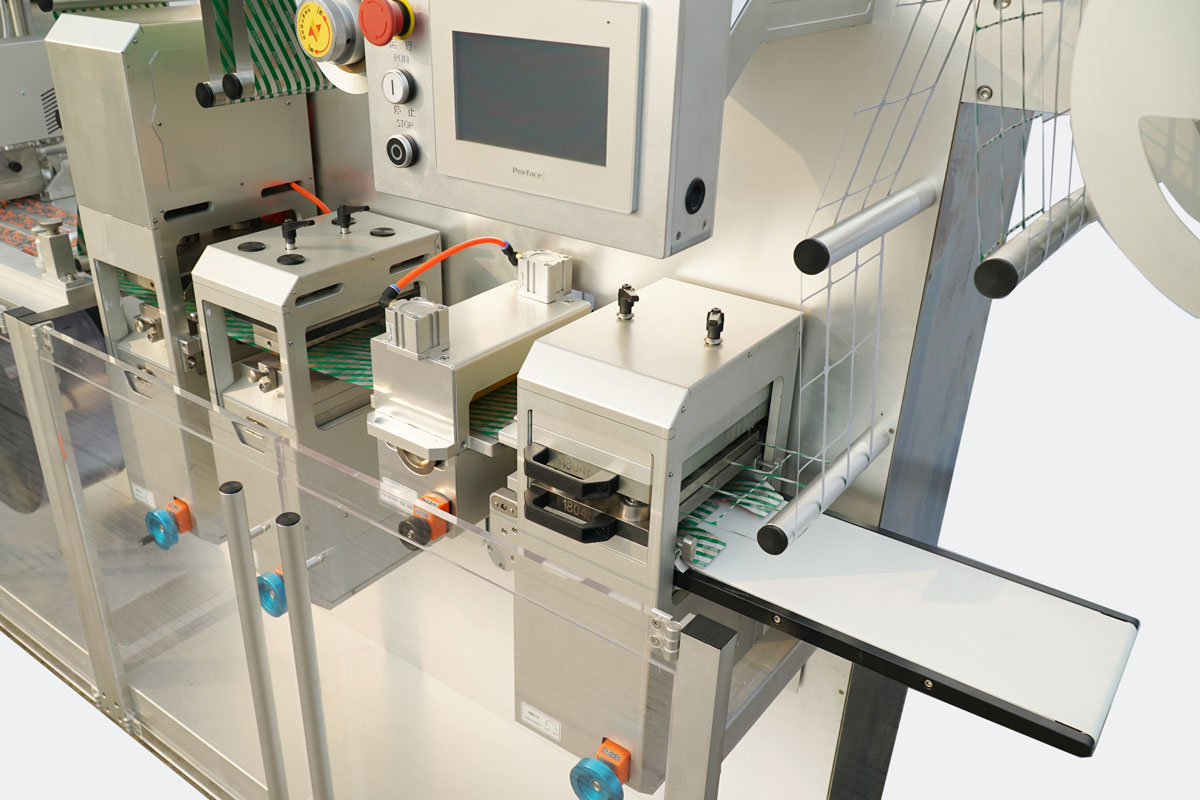

  • cGMP-compliant cantilever architecture on the JORNEN BMP180 blister machine isolating drive mechanisms from the operating zone

    cGMP-compliant cantilever architecture strictly isolates drive sections to prevent cross-contamination.

Main Technical Parameters
Max. Speed: 50 punches/min.
Max. Output: 450 blisters/min. ( blister size 57×80mm)
Max. Forming Area: 170×120mm
Material Max. width: 180 mm
Machine Power: 8.5kw
Machine Dimension: 3650×800×1900mm
Machine Weight: 900kg

Blister Pack & Blister Packaging Machine Guide

A pharmaceutical blister packaging machine is an advanced, fully automated system designed to execute the entire unit-dose packaging workflow. This equipment seamlessly integrates a sequence of meticulously synchronized stations, including material forming, product feeding, sealing, batch embossing, perforating, and punching.

From a mechanical and kinematic perspective, these packaging systems generally feature two primary configurations: intermittent-motion platen mechanisms and continuous-motion rotary styles.

Want to learn more about blister packaging and advanced blister machine technologies? Read our ultimate guide to blister packaging machines.
