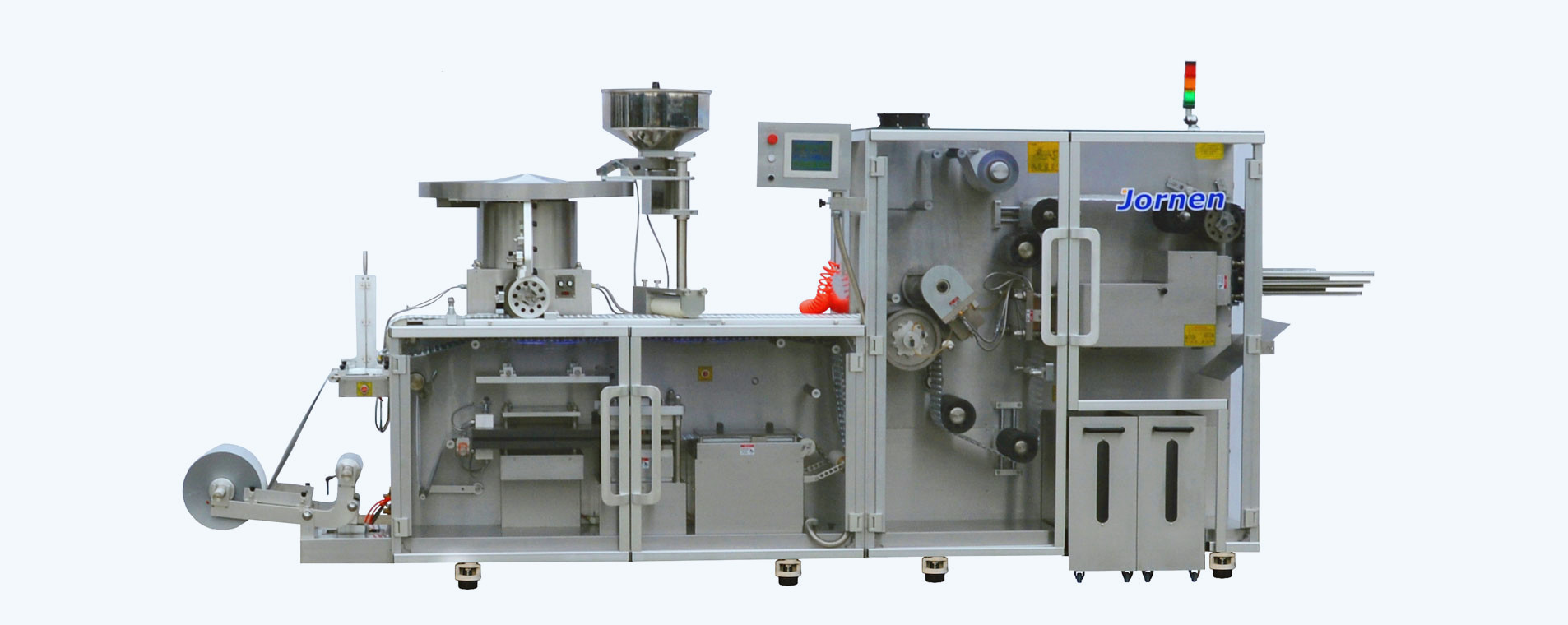

Blister Machine DPH260

Videos of this Blister Machine:
Alu-alu blister packaging equipped with pinhole detection system:
Alu-alu blister packaging equipped with chute-drum feeder:

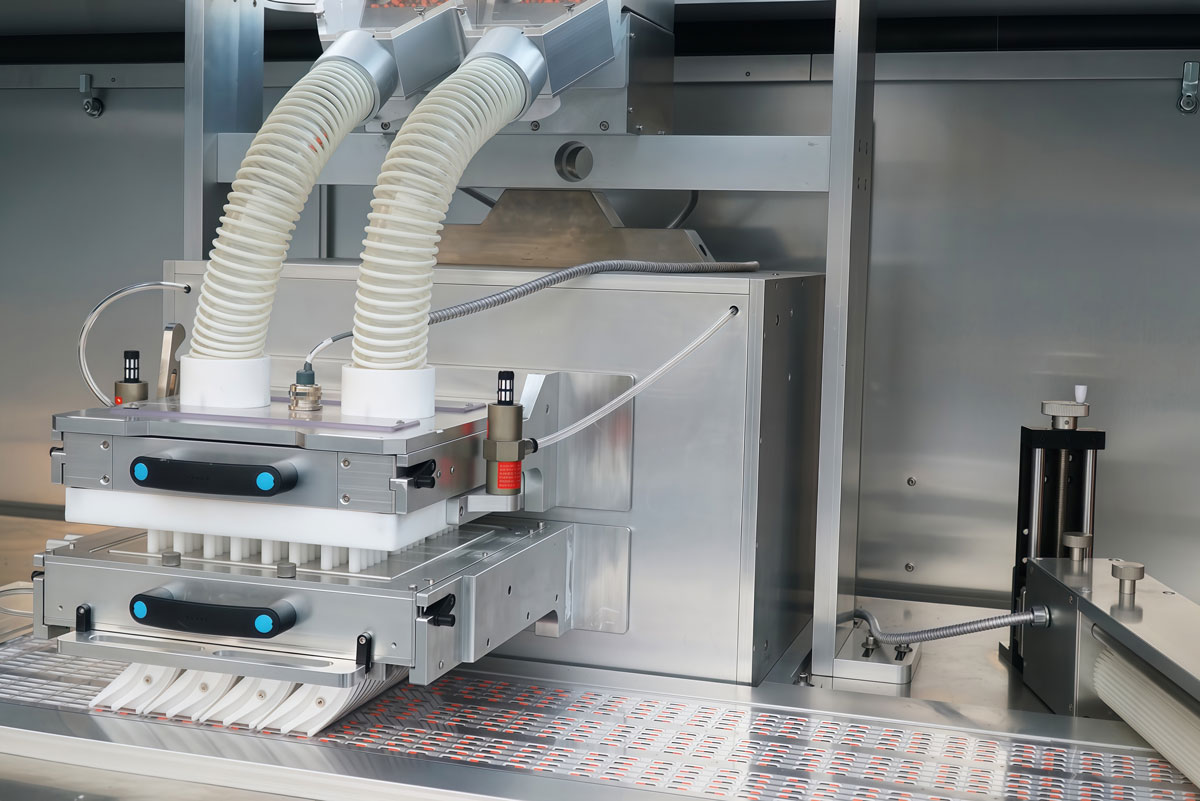

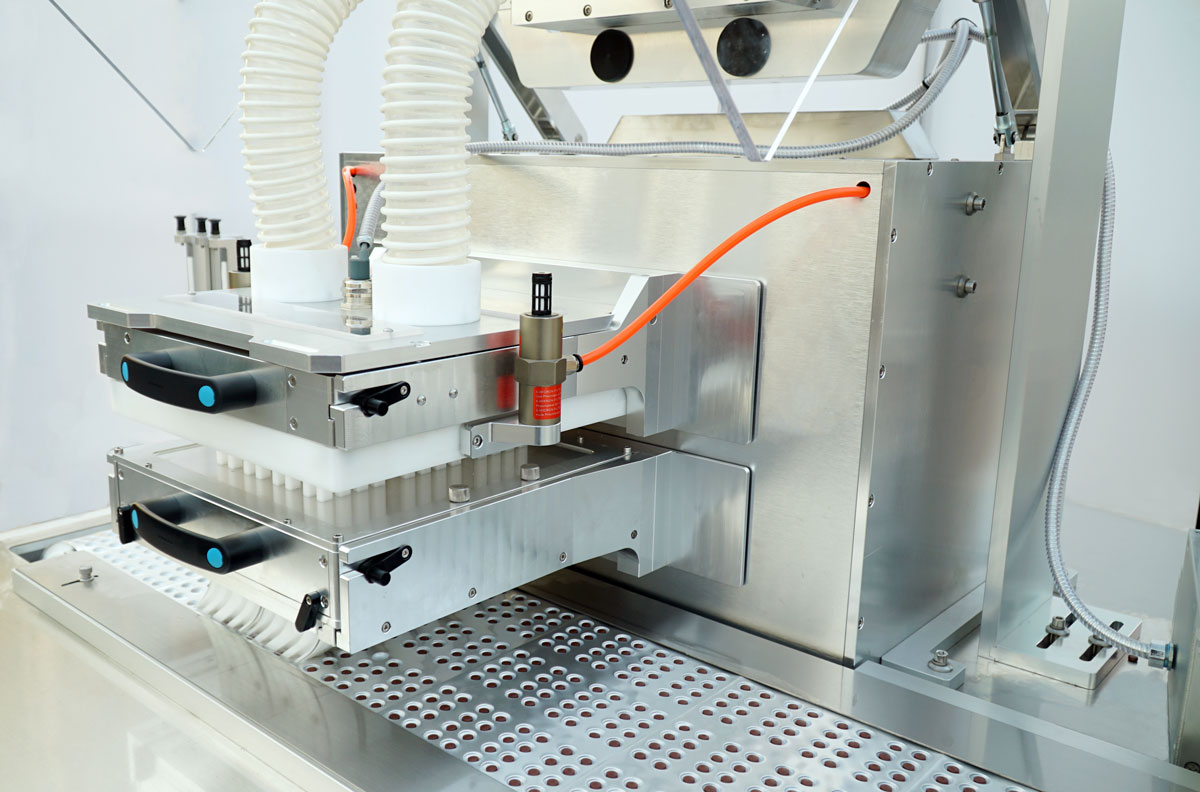

Various types of Blister Feeder:
. The working area is in cantilever construction. Separation of drive and operating zones are in compliance with pharmaceutical requirements.
. Accommodates forming material reels of up to 600mm in diameter and a waste material trimming cutter, which allows production runs uninterrupted of approximately 90 minutes, therefore, reducing the material replacement frequency.
. Equipped with integrated forming material splicer to enhance efficiency during material replacement.

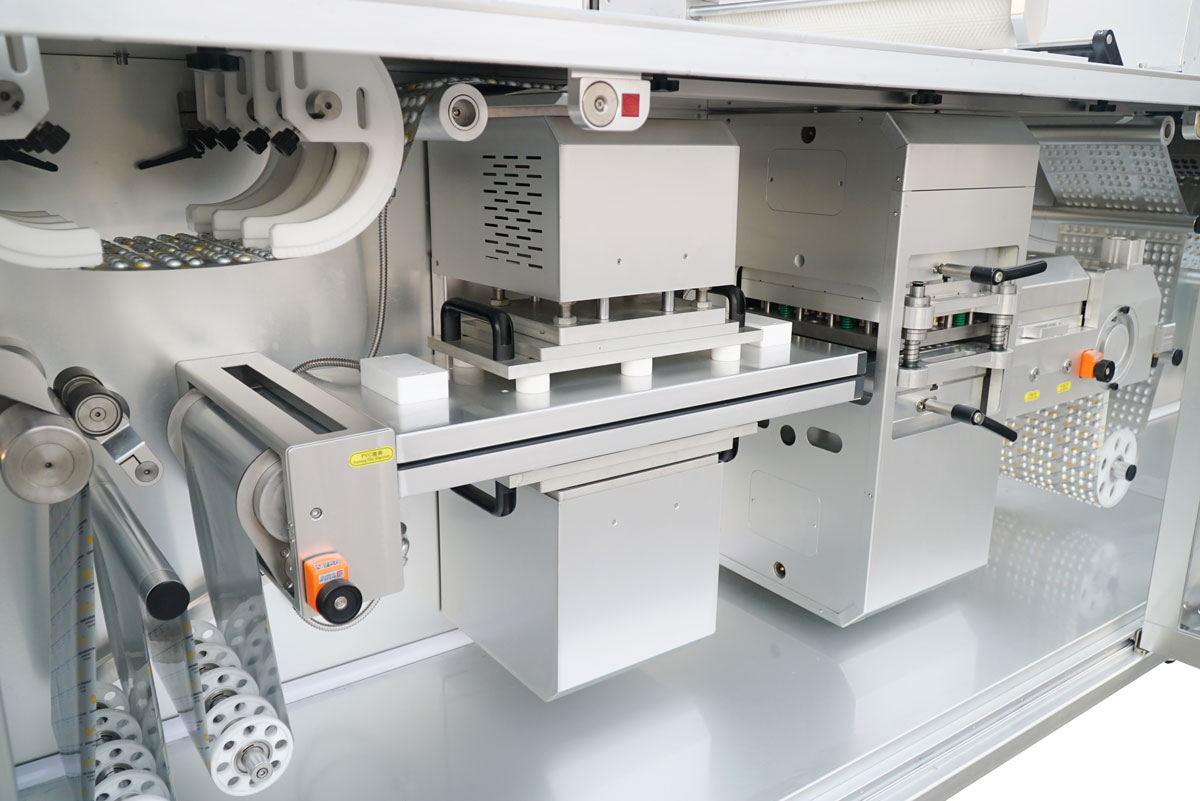

. The upper and lower plates adopt the contact heating method that significantly reduces the forming temperature. Thus the shrinkage, deforming of packaging material and power consumption are minimized.
. Equipped with automatic format locking, the positioning system achieves extremely straightforward format changeover
. Window frame type no-waste-trimming cutter saves packaging materials.

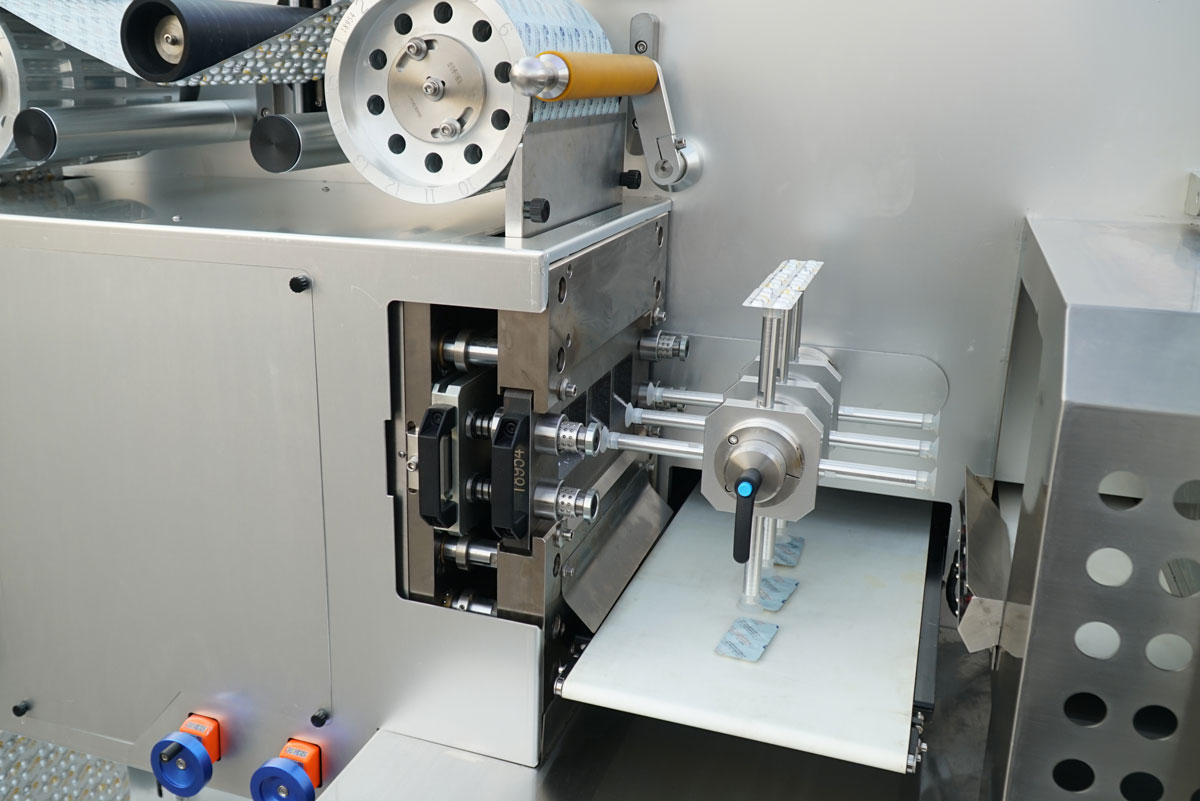

. Adopts transverse cutter which easily collects its blister card and rejects faulty blister.
. All the main parts are made of premium stainless steel and alu-alloy material and machined by advanced high-precision CNC tooling machines.
. Can be connected to subsequent machines, e.g., High-Speed Cartoners, Stretch-Banding Machine, and Case Packer, etc. to form a whole pharmaceutical packaging line.
Main Technical Parameters

Max. Speed: alu/alu 100 punches/min. alu/pvc 200 punches/min.
Max. Forming Area: 250×250mm
Max Forming Depth: 12mm
Material: Max. width 265mm
Machine Power: 16.7kw

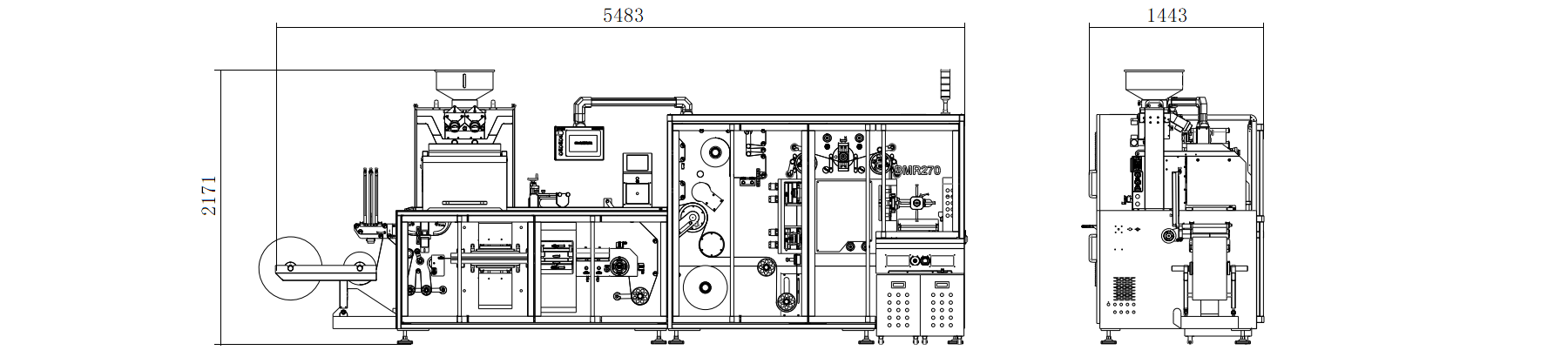

Machine Dimension: 4600mm×1250mm×2000mm
Machine Weight: 3200kg

Max. Speed: alu/alu 100 punches/min. alu/pvc 200 punches/min.
Max. Forming Area: 340×250mm
Max Forming Depth: 12mm
Material: Max. width 355mm
Machine Power: 17.5kw
Machine Dimension: 5100mm×1400mm×2000mm
Machine Weight: 3600kg
